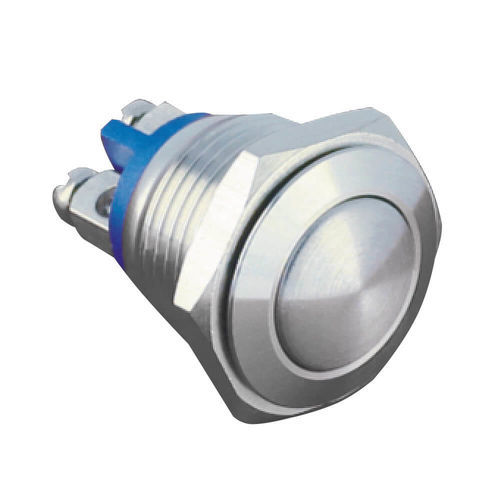

IP65 push-button switch CBP19-1AM series

vandal-proof1 NOmetal

The CBP19 push button combines robustness with waterproofness: - Electrical: Momentary function (push button). 1NO contact 0.5A/230V. - Physical: Metal push button to be flush-mounted in a 19mm diameter cut-out. Max panel thickness 6mm. Nickel-plated brass body. Plastic PA self-extinguishing UL94-VO base. Head shape: domed, flat or high. Protection rating IP65. Output via screw terminals. Secured by metal nut. Supplied with sealing gasket. - Sealing: With its IP65 protection rating, this push button can be safely installed outdoors. - Robustness: In addition to its modern and pleasant design, the metal body offers high 'anti-vandal' resistance. - Custom versions available on request: - Tab 2.8 or wire output, - NC contact, - IP67 protection, - Stainless steel body. - Compliance: CE, RoHs, Reach. - Applicable standard: EN61025-1:2018 Technical features / Specifications: - Type: Anti-vandal push button - Mounting: Flush-mount, 19mm diameter cut-out - Panel thickness: max 6mm - Body: Nickel-plated brass - Base: PA self-extinguishing UL94-VO - Head shape: domed, flat or high - Contact: 1NO, 0.5A/230V - Function: Momentary - Protection rating: IP65 - Output: Screw terminals - Securing: Metal nut - Supplied with: Sealing gasket - Compliance: CE, RoHs, Reach - Standard: EN61025-1:2018 - Custom options: Tab or wire output, NC contact, IP67, stainless steel body
