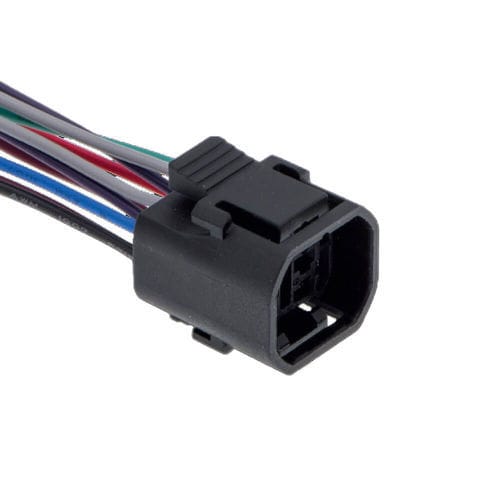

Electrical power supply connector CBP22-CW series

insulatedcustompre-wired

The pre-wired base simplifies the electrical connection of CBP22 push buttons: - **Physical Features:** The base is equipped with wires of different lengths. Each wire is insulated with a different color for easy identification. - **Number and Length of Wires:** The number of wires varies depending on the type of push button: - Non-illuminated: 6 wires, - Illuminated: 8 wires Several lengths are available. - **Ease of Wiring:** Wire outputs are easier to connect than 2.8mm tabs. The different lengths allow adaptation to various scenarios and reduce waste. - **Safety:** A clip fastening system secures the connection and prevents accidental disconnection. - **Custom Productions:** Tailor-made solutions: - Wire lengths, - Number of wires, - Addition of connectors **Variants and Order Codes:** - **Order Code** | **Compatible Push Button** | **Wire Length** | **Product Stocked** - CBP22-2C-CW15 | CBP22 non-illuminated | 15 cm | instock - CBP22-2C-CW50 | CBP22 non-illuminated | 50 cm | instock - CBP22-2C-CW100 | CBP22 non-illuminated | 1 m | instock - CBP22-2C-CW200 | CBP22 non-illuminated | 2 m | instock - CBP22-2CL-CW15 | CBP22 mono-led | 15 cm | instock - CBP22-2CL-CW50 | CBP22 mono-led | 50 cm | instock - CBP22-2CL-CW100 | CBP22 mono-led | 1 m | instock - CBP22-2CL-CW200 | CBP22 mono-led | 2 m | instock - CBP22-2C3L-CW15 | CBP22 tri-led | 15 cm | instock - CBP22-2C3L-CW50 | CBP22 tri-led | 50 cm | instock - CBP22-2C3L-CW100 | CBP22 tri-led | 1 m | instock - CBP22-2C3L-CW200 | CBP22 tri-led | 2 m | instock - **Features / Technical Specifications:** - Product: Pre-wired base for CBP22 push button - Compatibility: CBP22 non-illuminated, mono-led, tri-led - Number of wires: 6 (non-illuminated), 8 (illuminated) - Available lengths: 15 cm, 50 cm, 1 m, 2 m - Wire identification: different colors - Fastening: by clips - Custom options: length, number of wires, addition of connectors
