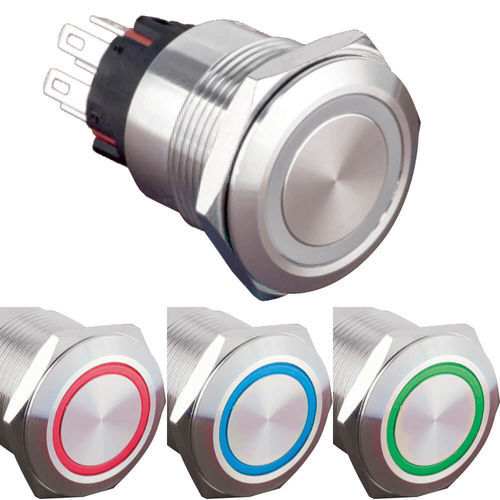

IK09 push-button switch CBP22-2C-RGB series

IP65vandal-proof2 NO/NC

The CBP22-2CM-RGB push button combines design and robustness: - Electrical: - Push button available with momentary (push) or maintained (stable) function. - 2x NO/NC contact 5A/230V. - The push button is equipped with 4 tabs to power the 3 LEDs: - 1 terminal to power the common = cathode (-). - 3 terminals to power each LED = anode (+). - LED lifespan min 40,000h. - Physical: - Metal push button to be mounted in a 22mm diameter cutout. Max panel thickness 8mm. - Stainless steel body. Plastic PA self-extinguishing UL94-VO base. - Flat head shape. - Protection rating IP65 and IK09. - Tab output. - Secured by metal nut. - Supplied with sealing gasket. - Sealing: - With its IP65 protection rating, this push button can be safely installed outdoors. - Robustness: - In addition to its modern and pleasant design, the metal body offers high 'anti-vandal' resistance. - Available variants on request: - IP67 protection - Other colors - Laser or luminous engraving - Rear sealing by resin injection - Other LED voltages - ...and many more... - Compliance: - CE, RoHS, Reach. - Accessories for easier installation: - Wrench: allows optimal holding of the push button on the panel. - Pre-wired base: for wire outputs. Variants and order codes: Order code | Function | Stocked product --- | --- | --- CBP22-2CS-TMSP-A24RGB | Maintained | In stock CBP22-2CM-TMSP-A24RGB | Momentary | In stock - Technical features / specifications: - Type: Tri-color LED anti-vandal push button - Mounting diameter: 22mm - Contact: 2x NO/NC, 5A/230V - LEDs: Red, green, blue, powered at 24VDC - Body: Stainless steel - Base: PA self-extinguishing UL94-VO - Head: Flat - Panel thickness: max 8mm - Protection: IP65 (optionally IP67), IK09 - LED lifespan: min 40,000h - Supplied with sealing gasket - Compliance: CE, RoHS, Reach
