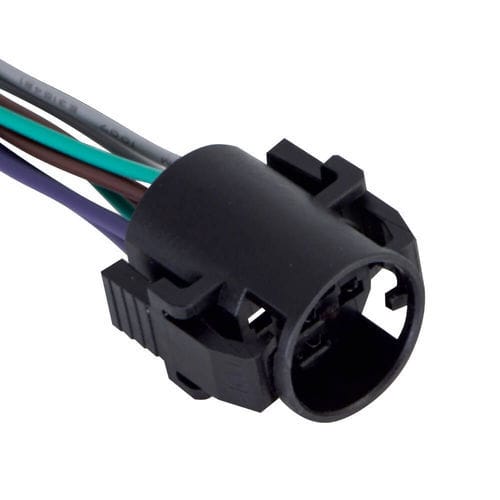

Pigtail CBP19-CW series

The pre-wired socket simplifies the electrical connection of CBP19 push buttons: - Physical characteristics: The socket is equipped with wires of different lengths. Each wire is insulated with a different color for easy identification. - Number and length of wires: The number of wires varies depending on the type of push button: - Non-illuminated: 6 wires - Illuminated: 8 wires Several lengths are available. - Wiring simplicity: The wire outputs are easier to connect than 2.8mm tabs. The different lengths allow adaptation to various situations and help reduce waste. - Safety: A clip-on fixing system secures the connection and prevents accidental disconnection. - Custom productions: Custom-made options: - Wire lengths - Number of wires - Addition of connectors Variants and order codes: Order code | Compatible push button | Wire length | Stocked product CBP19-2CL-CW15 | CBP19 illuminated | 15 cm | In stock CBP19-2CL-CW50 | CBP19 illuminated | 50 cm | In stock CBP19-2CL-CW100 | CBP19 illuminated | 1 m | In stock CBP19-2CL-CW200 | CBP19 illuminated | 2 m | In stock CBP19-2C-CW15 | CBP19 non-illuminated | 15 cm | In stock CBP19-2C-CW50 | CBP19 non-illuminated | 50 cm | In stock CBP19-2C-CW100 | CBP19 non-illuminated | 1 m | In stock CBP19-2C-CW200 | CBP19 non-illuminated | 2 m | In stock Technical features / specifications: - Compatible with CBP19 push buttons (illuminated or non-illuminated) - Number of wires: 6 (non-illuminated), 8 (illuminated) - Wire lengths available: 15 cm, 50 cm, 1 m, 2 m - Each wire is color-coded for easy identification - Clip-on fixing system for secure connection - Custom versions available (wire length, number, connectors)
