IP65 push-button switch CBP19D-1A series
vandal-proof1 NO/NCflat

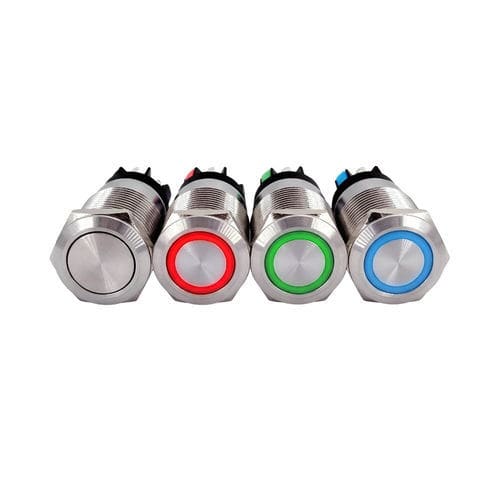

IP65 push-button switch - CBP19D-1A series - Lettel - vandal-proof / 1 NO/NC / flat
IP65 push-button switch - CBP19D-1A series - Lettel - vandal-proof / 1 NO/NC / flat
Add to favorites
Compare this product
Go to the Lettel website for more information

Characteristics

Protection level
IP65, vandal-proof
Contact configuration
1 NO/NC
Other characteristics
flat, non-illuminated, blue LED, round, stainless steel, green LED, LED-illuminated, latching action, momentary, red LED, panel-mount

Description

Overview
  • Pushbutton Ø19 – 1NO + 1NC – momentary or maintained – protection rating IP65.
  • Pushbutton with stainless steel 304 body, flat head, panel-mounted (cut-out Ø19 mm) for panels up to 10 mm thick. Screw terminal connections.


Key features (excerpt)
  • Available functions: momentary (pushbutton) or maintained (latching).
  • Contacts: 1NO + 1NC, 5 A / 230 V.
  • Body: stainless steel 304, flat head, panel cut-out Ø19 mm, maximum panel thickness 10 mm.
  • Protection: IP65.
  • Output: screw terminals.


Functionalities
  • Sealing: IP65, suitable for protected outdoor installation against water jets.
  • Vandal resistance: stainless steel body for demanding environments and public areas.
  • Applications: control panels, industrial machines, automation systems, kiosks, access control equipment.


Variants and order codes
  • CBP19D-1ACS-SMSP | Maintained | Supply voltage: None | LED: None | In stock
  • CBP19D-1ACS-SMSP-A24B | Maintained | 24 V AC/DC | LED: Blue | In stock
  • CBP19D-1ACS-SMSP-A24R | Maintained | 24 V AC/DC | LED: Red | In stock
  • CBP19D-1ACS-SMSP-A24G | Maintained | 24 V AC/DC | LED: Green | In stock
  • CBP19D-1ACS-SMSP-A230B | Maintained | 230 V AC | LED: Blue | In stock
  • CBP19D-1ACS-SMSP-A230R | Maintained | 230 V AC | LED: Red | In stock
  • CBP19D-1ACS-SMSP-A230G | Maintained | 230 V AC | LED: Green | In stock
  • CBP19D-1ACM-SMSP | Momentary | Supply voltage: None | LED: None | In stock
  • CBP19D-1ACM-SMSP-A24B | Momentary | 24 V AC/DC | LED: Blue | In stock
  • CBP19D-1ACM-SMSP-A24R | Momentary | 24 V AC/DC | LED: Red | In stock
  • CBP19D-1ACM-SMSP-A24G | Momentary | 24 V AC/DC | LED: Green | In stock
  • CBP19D-1ACM-SMSP-A230B | Momentary | 230 V AC | LED: Blue | In stock
  • CBP19D-1ACM-SMSP-A230R | Momentary | 230 V AC | LED: Red | In stock
  • CBP19D-1ACM-SMSP-A230G | Momentary | 230 V AC | LED: Green | In stock


Customizable variants (on request)
  • IP67 protection.
  • Other LED colors.
  • Emergency stop type or rotary switches.
  • Laser or backlit engraving.
  • Rear sealing by resin potting.
  • Other LED voltages and specific options.


Accessories
  • Mounting nut wrench to optimize pushbutton retention.


Resources
  • Pushbutton range presentation (documentation available).
  • CBP19D range datasheet (documentation available).


Standards and certifications
  • Compliance: CE, RoHS, REACH.


Technical specifications
  • Model reference: CBP19D-1A.
  • Panel cut-out: Ø19 mm.
  • Maximum panel thickness: 10 mm.
  • Body material: stainless steel 304 (vandal resistant).
  • Head type: flat.
  • Protection rating: IP65 (IP67 optional on request).
  • Contacts: 1NO + 1NC, 5 A / 230 V.
  • Connections: screw terminals.
  • Illuminated versions available: LED 24 V AC/DC or 230 V AC (colors: blue, red, green or non-illuminated).
  • Functions: momentary (pushbutton) or maintained (latching).
