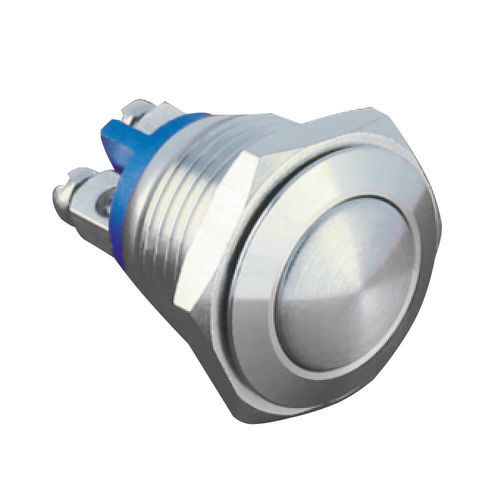

Vandal-proof push-button switch CBP16A-1AM

IP651 NO/NCnylon

The CBP16 push button combines robustness with waterproofness: - Electrical: Momentary function (push button). 1NO contact 0.5A/230V. - Physical: Metal push button to be mounted in a 16mm diameter cut-out. Maximum panel thickness 6mm. Nickel-plated brass body. Plastic PA self-extinguishing UL94-VO base. Head shape: domed, flat, or high. Protection rating IP65. Screw terminal output. Secured by metal nut. Supplied with sealing gasket. - Sealing: With its IP65 protection rating, this push button can be safely installed outdoors. - Robustness: In addition to its modern and pleasant design, the metal body offers high resistance of the "anti-vandal" type. - Custom versions available on request: - Tab 2.8 or wire output, - NC contact, - IP67 protection, - Stainless steel body. - Compliance: CE, RoHs, Reach. - Applicable standard: EN61025-1:2018 - Technical datasheets available: Switching and light signaling Technical characteristics / specifications: - Product: Anti-vandal push button - Model: CBP16-1AM - Mounting: 16mm diameter cut-out - Contact: 1NO, 0.5A/230V - Function: Momentary - Body: Nickel-plated brass - Base: PA self-extinguishing UL94-VO - Panel thickness: max 6mm - Head shape: domed, flat, or high - Protection: IP65 - Terminal: Screw - Securing: Metal nut - Sealing: Supplied with gasket - Compliance: CE, RoHs, Reach - Standard: EN61025-1:2018 - Custom versions: Tab output, NC contact, IP67, stainless steel body
