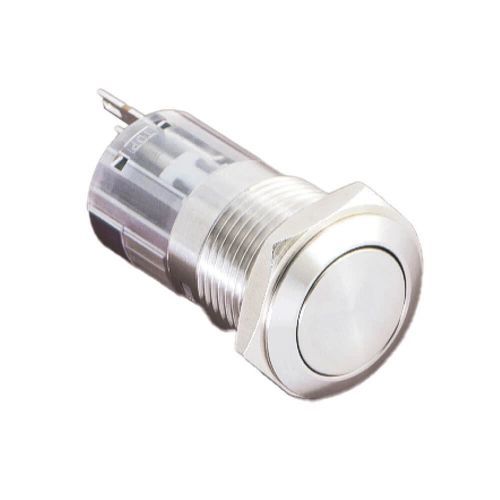

IK09 push-button switch CBP16-2C series

IP652 NO/NCpolyamide

The CBP16-2CM push button combines design and robustness: - Electrical: - Momentary (push button) or maintained (stable) function. - 2x NO/NC contact 5A/230V. - Physical: - Metal push button to be flush-mounted in a 16mm diameter cutout. Max panel thickness 8mm. - Stainless steel body. Plastic PA self-extinguishing UL94-VO base. - Flat head shape. - IP65 and IK09 protection rating. - Tab output. Pre-wired base optional for wire outputs. - Secured by metal nut. - Supplied with sealing gasket. - Sealing: - With its IP65 protection rating, this push button can be safely installed outdoors. - Robustness: - In addition to its modern and pleasant design, the metal body offers high "anti-vandal" resistance. - Custom productions: - Variants available on request: - IP67 protection - Other colors - "Emergency stop" or "rotary switches" type - Laser or luminous engraving - Rear sealing by resin injection - Other LED voltages - ... and many more ... - Compliance: - CE, RoHs, Reach. Variants and ordering codes: - Order code: CBP16-2CS-TMSP, Function: Maintained, Stocked product: In stock - Order code: CBP16-2CM-TMSP, Function: Momentary, Stocked product: In stock - Technical datasheet available - General catalog available Technical features / specifications: - Function: Momentary or maintained - Contact: 2x NO/NC 5A/230V - Mounting: 16mm diameter cutout, max panel thickness 8mm - Body: Stainless steel - Base: Plastic PA UL94-VO - Head: Flat - Protection: IP65, IK09 - Output: Tab (pre-wired optional) - Securing: Metal nut - Accessories: Sealing gasket included - Compliance: CE, RoHs, Reach
