Plastic push-button switch PP22
piezovandal-proofrugged

Plastic push-button switch - PP22 - YUEQING DANPU ELECTRIC ( LANGIR ) CO.,LTD. - piezo / vandal-proof / rugged
Plastic push-button switch - PP22 - YUEQING DANPU ELECTRIC ( LANGIR ) CO.,LTD. - piezo / vandal-proof / rugged
Plastic push-button switch - PP22 - YUEQING DANPU ELECTRIC ( LANGIR ) CO.,LTD. - piezo / vandal-proof / rugged - image - 2
Plastic push-button switch - PP22 - YUEQING DANPU ELECTRIC ( LANGIR ) CO.,LTD. - piezo / vandal-proof / rugged - image - 3
Plastic push-button switch - PP22 - YUEQING DANPU ELECTRIC ( LANGIR ) CO.,LTD. - piezo / vandal-proof / rugged - image - 4
Add to favorites
Compare this product

Characteristics

Type
piezo
Protection level
vandal-proof, rugged, IP68
Other characteristics
plastic, LED-illuminated, panel-mount, flush-mount, red LED, blue LED, green LED, DC, sealed, AC, built-in, momentary

Description

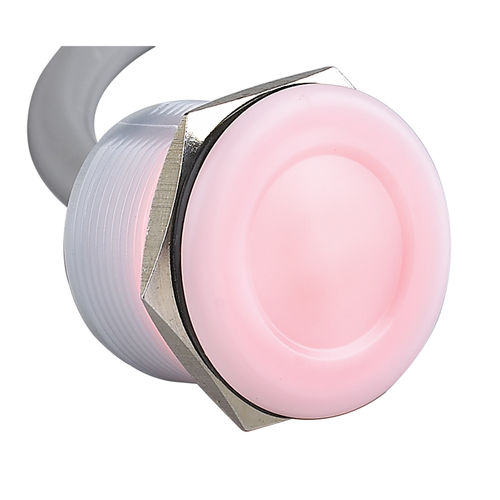

Plastic piezo switches offering rugged, sealed tamper and vandal proof solid state switching. Exceptional durability and reliability. Fitted with red, green and blue LED's for illumination. Plastic Piezo switch • 25mm diameter actuator • 22.2mm diameter mounting hole • Normally open, momentary action • Make impulse time of 125-300 msec • Recessed face • Wi re termination • IP68 Sealed • Available in 12V and 24V LED’s Specifications: • Operating voltage: : 1-24V AC/DC • Switching current : 0.2A (Standard) / 1A • Actuation force : 3-5N • Operating temperature : -20°C to +70°C • LED operating voltage : 12V DC max OR 24V DC max • LED max current consumption: : 12V : 24V • Red : 18mA : 18mA • Green : 9mA : 9mA • Blue : 27mA : 16mA • Ingress Protection : IP68 • Life time : 50 million operations • Material : POM.

Catalogs

Other YUEQING DANPU ELECTRIC ( LANGIR ) CO.,LTD. products

Piezo Switch
