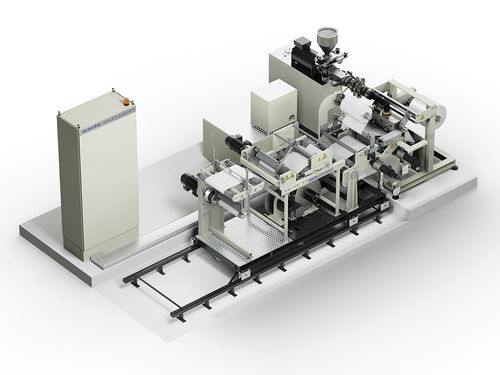

Compact extrusion line

laboratorywith touchscreenflat-film

Our Laboratory Extrusions Lines are designed and built for the processing of thermoplastic material, adapted to the customer’s requirements in a great extent. esde Laboratory Lines are designed for product development, material samplings and small batch production of flat films and sheets. Our customers are research institutions, universities, film manufacturers and chemical companies. The investment in a Laboratory Line results in great savings on costs for developments, decreases the material consumption and considerably reduces the time requirements due to short reaction time. The conversion to small batch production is easy and very economical as the robust and solid design of our laboratory lines allows continuous operation (24/7). Small scale extrusion of great variety The tasks of a laboratory Line are the extrusion of various material formulations in different sizes to one-layer or multi-layer flat films and sheets. With regard to design and execution esde Laboratory Lines are small versions of our large production lines. The operating data collection allows the reduction of processes for a precise scale-up. esde Laboratory Lines can individually and economically be adapted to every task by modules and special constructions. Basic version of an esde Laboratory Line • - Laboratory extruder for processing thermoplastic materials • - Manual material feed by movable hopper • - Laboratory die for small slit widths of 160 to 600 mm and for film thicknesses of minimum 100 µm • - Polishing stack with rolls in horizontal or vertical position • - Edge trim cut • - Winders or cutting units and stacker
