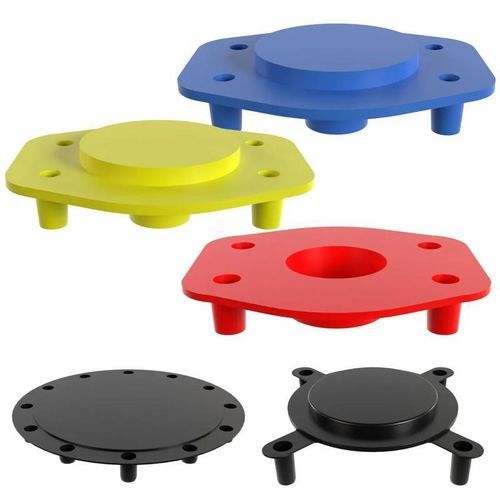

Flange guard SRCPFL

Studded full-face flange protector providing full-face coverage and bore protection for high-pressure applications. Studs insert into flange bolt holes for positive engagement and secure retention.

Key features

• Full-face coverage and bore protection specifically for high-pressure applications.
• Studs insert into flange bolt holes for a positive, secure fit.
• Manufactured from a cost-effective material with good chemical resistance.
• Available for SAE Code 61 (3000–5000 PSI) and SAE Code 62 (6000 PSI).

Applications

• Temporary protection of flanges during transport, storage or maintenance of high-pressure hydraulic systems.

Technical specifications

• Materials: LLDPE, PE, LDPE, PP.
• Colors: Red, Blue, Yellow.
• Series / typical codes: SRCPFL, SR1076, SRL0000.
• Pressure ratings: models for 3000 PSI (SAE 61) and 6000 PSI (SAE 62).
• Attachment: studs designed to engage flange bolt holes for positive retention.
• Available nominal diameters: 12.7 mm to 152.4 mm (0.500 in to 6.000 in).
• Example SKUs: 10287699, 10287705, 10287712, 10100417.
