Container protective cover PCR

freightpolyethylenefor production

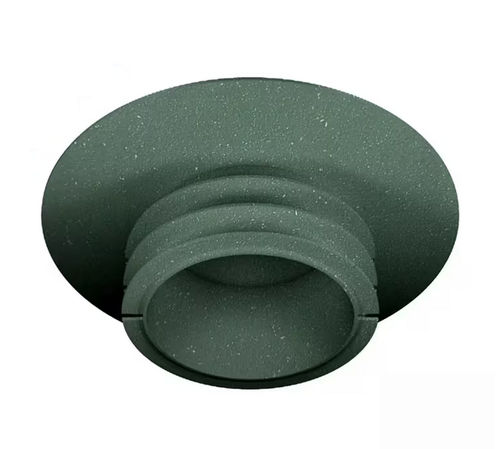

Cylindrical flange face protector designed to protect the raised face of a flange from dirt, moisture, paint and sandblasting during production, handling and transport. Provides a tight fit for secure temporary protection, with easy installation and removal. Available for multiple nominal pipe sizes.

Variants / SKUs (examples)

• 20750695 — Face protector DN 15: d = 23.8 mm, H = 16.0 mm — Price range €0.1972 - €0.3068
• 20750718 — Face protector DN 20: d = 23.8 mm, D = 58.3 mm, H = 16.0 mm — Price range €0.2187 - €0.3402
• 20750732 — Face protector DN 25: d = 30.0 mm, D = 70.0 mm, H = 19.5 mm — Price range €0.2933 - €0.4562
• 20750787 — Face protector DN 50: d = 56.0 mm, D = 103.0 mm, H = 29.4 mm — Price range €0.4571 - €0.7110
• 20750671 — Face protector DN 100: d = 108.0 mm, D = 163.0 mm, H = 35.5 mm — Price range €1.0419 - €1.6207
• 20750701 — Face protector DN 150: d = 162.6 mm, D = 216.0 mm, H = 36.5 mm — Price range €2.0916 - €3.2536
• 20750749 — Face protector 10" (nominal): d = 267.0 mm, D = 345.0 mm, H = 44.5 mm — Price range €3.8119 - €5.9297
• 20750756 — Face protector DN 300 / 12": d = 314.0 mm, D = 408.0 mm, H = 60.5 mm — Price range €5.1461 - €8.0051

Characteristics / technical specifications

• Application: temporary protection of flange raised faces during production, handling and transport (protection against dirt, moisture, paint and sandblasting)
• Material: LDPE (low-density polyethylene) made from post-consumer recycled material (PCR)
• Color: Green (standard for the product range shown)
• Series / code: SRCXFRPCR
• Shape & fit: cylindrical profile with tight fit for secure protection
• Range: multiple nominal diameters (examples from DN 15 / 1/2" up to 12" and larger depending on SKU)
• Packaging / availability: multiple SKUs listed with price ranges and lead times per reference
