Multi-touch screen panel PC PNC-CXX75LCDcapacitive touch screen15"
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, multi-touch screen, capacitive touch screen
- Display size
- 15", 21.5", 19", 17", 18.5", 12.1", 10.4"
- Resolution
- 1920 x 1080, 1024 x 768, 1280 x 1024
- Processor
- Intel® Celeron® J6412, Intel® Core™ i3-N305, Intel® Alder Lake-N, Intel® Processor N97
- Memory
- DDR4 DRAM, DDR4 SO-DIMM
- Operating system
- Linux, Windows 10, Windows 11
- Construction
- fanless, modular, aluminum frame
- Mounting
- VESA mounting, wall-mounted, arm-mounted
- Applications
- industrial, data acquisition, for hazardous areas
- Protection level
- IP65, waterproof front panel, dust-proof, shock-proof, vibration-resistant
- Integrated peripheral
- with programmable logic controller (PLC)
- Other characteristics
- wide temperature range, indoor, USB 2.0, RJ45
- Memory size
Min.: 8 GB
Max.: 16 GB
Description

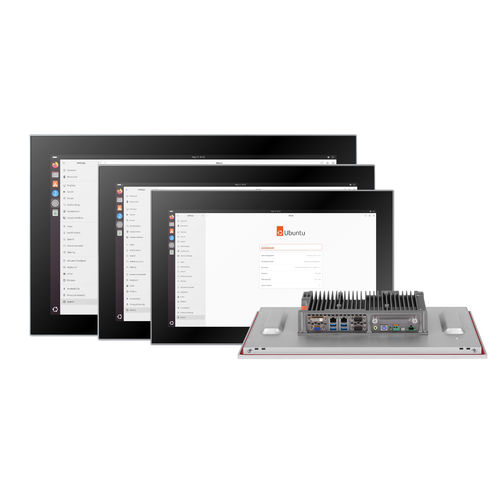

Industrial Panel PC | PNC-CXX75 Series
Rapid Processing and Inference
The PNC-CXX75 series panel PC is equipped with the Intel Alder Lake-N high-performance processor, with the option N97 or N305 CPU model.
Comprehensive I/O interface
The PNC-CXX75 series panel PC has DVI-D and VGA interfaces and supports multi-display. Two gigabit network ports, 2x USB2.0 and 2x USB3.2 Gen1 Type A provide users with multiple data transfer interfaces. The two serial ports are set to RS232 mode by default.
Supports multiple installation methods, arm mounting, wall mounting and panel mounting
High-quality touch screen and multiple size options, 10.4", 12.1", 15", 15.6", 17", 18.5", 19", and 21.5"
Robust and Reliable: Tested by IEC 60068-2-64 and IEC 60068-2-27 standards. CE and FCC Class A certification
- Aluminum Magnesium alloy die-casting
- Fanless design
- Front panel IP65
- Multi-touch projected capacitive
- Intel® Alder Lake-N processor
- 2 x RS232/RS485
Rapid Processing and Inference
The PNC-CXX75 series panel PC is equipped with the Intel Alder Lake-N high-performance processor, with the option N97 or N305 CPU model.
Comprehensive I/O interface
The PNC-CXX75 series panel PC has DVI-D and VGA interfaces and supports multi-display. Two gigabit network ports, 2x USB2.0 and 2x USB3.2 Gen1 Type A provide users with multiple data transfer interfaces. The two serial ports are set to RS232 mode by default.
Supports multiple installation methods, arm mounting, wall mounting and panel mounting
High-quality touch screen and multiple size options, 10.4", 12.1", 15", 15.6", 17", 18.5", 19", and 21.5"
Robust and Reliable: Tested by IEC 60068-2-64 and IEC 60068-2-27 standards. CE and FCC Class A certification
