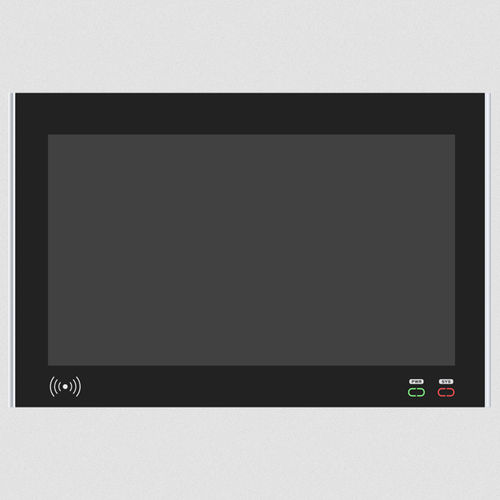

Multitouch screen panel PC PNC-CXX25

PCAP capacitive touch screen10"12"

Product Overview
The PNC-CXX25 series is a modular, fanless industrial panel PC designed for flexible installation and rugged reliability. It is suitable for a variety of industrial automation and tough environments, featuring a projected capacitive touch operation panel and an aluminum magnesium alloy die-cast frame. The series offers multiple CPU options, including Intel Processor N97, Core i3, i5, and i7, allowing users to select the configuration that best fits their needs.

Features

• 15.6"/21.5" display options
• Intel® Processor N97/Core i3/i5/i7 options
• 1x DDR4-3200MHz SO-DIMM slot, up to 32GB
• Supports NFC
• Fanless design, front panel IP65 compliant
• Supports panel mounted and VESA mounted

Rapid Processing and Inference
The PNC-CXX25 series offers a variety of CPU choices: Intel Process N97, Intel Core i5-7200U, i7-7500U, i3-1215U, i5-1235U, and i7-1255U. Users can select the CPU according to their requirements.

Comprehensive I/O Interface
The panel PC features HDMI and VGA interfaces, supporting multiple displays. It includes two Gigabit Ethernet ports, four USB 3.2 Gen1 Type A ports, and four serial ports (RS232 by default, with COM1 configurable to RS485 in BIOS). NFC functionality is supported on the front panel.

Supports Multiple Installation Methods
The PNC-CXX25 series supports both Arm mounting and Panel mounting, enabling adaptable deployment in diverse intelligent manufacturing environments. For panel mounting, users should refer to the product datasheet for cut-out size and installation instructions.

High-Quality Touch Screen and Multiple Size Options
This modular fanless industrial tablet computer features a projected capacitive touch screen with a smooth multi-touch experience and a modern appearance. Display sizes available: 10.4, 12.1, 15, 15.6, 17, 18.5, 19, and 21.5 inches.

Robust and Reliable
The device is tested according to IEC 60068-2-64 and IEC 60068-2-27 standards for vibration and mechanical impact. It is CE and FCC Class A certified for electromagnetic compatibility and safety. The front panel is dustproof and water-resistant (IP65).

Specifications

• CPU: Intel Processor N97 / Intel Core i5-7200U / i7-7500U / i3-1215U / i5-1235U / i7-1255U
• Memory: 1 x DDR4-3200MHz SO-DIMM slot, up to 32GB
• Storage: 1 x M.2-2242/2280 M Key (SATA/NVMe)
• Display: 1 x HDMI, 1 x VGA
• USB: 4 x USB3.0
• COM: 4 x RS-232 (COM1, RS-485 Optional)
• LAN: 2 x Gbe (RJ45), Realtek8111H controller
• Expansion: 1 x Mini PCIe slot for 4G, 1 x M.2 E key for WiFi
• TPM: TPM 2.0
• Watchdog: 1~255 levels programmable
• NFC: Supports NFC frequency of 13.56MHz
• Display Type: 15.6", 21.5"
• Max. Resolution: 1920x1080
• Luminance: 250 nits
• Contrast Ratio: 800:1/1000:1
• Touch Type: Multi-touch projected capacitive
• Light Transmission: ≥ 87%
• Controller Interface: USB2.0
• OS Support: Windows 10, Windows 11, Linux
• Input Voltage: DC 12V-5A (N97, 7200U, 7500U CPU), DC 12V-7A (12th CPU)
• Power Consumption: <60Watt (N97, 7200U, 7500U CPU), <84Watt (12th CPU)
• Dimensions: 15.6" 406.5x265.0x60.0mm (16.0x10.4x2.4in), 21.5" 545.5x340.0x60.0mm (21.5x13.4x2.4in)
• VESA: 100x100mm (3.9x3.9in)
• Net Weight: 15.6" 4.59kg (10.12lb), 21.5" 6.85kg (15.10lb)
• Operating Temperature: 0~50℃ (32~122℉)
• Storage Temperature: -20~60℃ (-4~140℉)
• Relative Humidity: 5%~95% @40° (non-condensing)
• IP Rating: Front panel IP65
• Vibration: SSD applied:1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis
• Shock: SSD applied:10G, IEC 60068-2-27, Half sine wave, lasting 11ms
• EMC: CE/FCC
