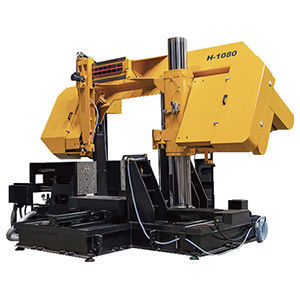

Band saw H-1080

for metalsautomaticvariable-speed

Overview
Industrial automatic metal-cutting band saw designed for cutting large-diameter stock. Variable blade speed and dedicated drive motors support continuous production operations.

Product details

• Model: H-1080
• Automatic feeding and cycle control for repetitive cuts
• Variable blade speed control: 15–70 m/min (variable frequency)
• Blade size: 67 × 1.6 × 8800 mm
• Spindle motor: 11 kW; Pressure motor: 3.75 kW

Technical specification table

• Band saw model: H-1080
• Cutting capacity: OD 800 mm; 1000W*800H
• Blade speed (m/min): 15-70 Frequency
• Blade size (mm): 67*1.6*8800
• Spindle motor (kW): 11
• Pressure motor (kW): 3.75
• Machine layout (mm): 4000*2400*2980

Tags

• band
• saw

caractéristiques / spécifications techniques

• Band saw model: H-1080
• Cutting capacity: OD 800 mm (also indicated: 1000W*800H)
• Blade speed: 15-70 m/min
• Blade size: 67 x 1.6 x 8800 mm
• Spindle motor power: 11 kW
• Pressure motor power: 3.75 kW
• Machine layout (L×W×H): 4000 × 2400 × 2980 mm
