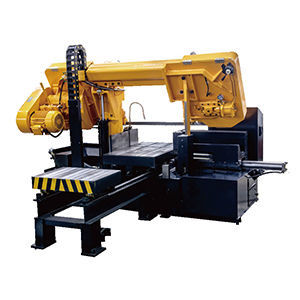

Band saw H-7065horizontalfor metalsautomatic
Add to favorites
Compare this product
Characteristics
- Technology
- band
- Orientation
- horizontal
- Treated material
- for metals
- Operational mode
- automatic, CNC
- Other characteristics
- hydraulic, programmable
- Round piece diameter
650 mm
(26 in)- Blade length
7,400 mm
(291.34 in)- Blade width
54 mm
(2.13 in)
Description
Product overview
H-7065 NC automatic CNC horizontal band saw for metal cutting, intended for industrial workshops and production lines. CNC control provides programmable cutting cycles, automatic feeding and integrated coolant options to support repetitive precision cuts.
Technical data (table)
Band saw model: H-7065
Cutting capacity (mm): OD 650 / 700W×650H
Blade speed (m/min): 15-70
Blade size (mm): 54×1.6×7400
Spindle motor (kW): 7.5
Pressure motor (kW): 2.2
Machine layout (mm): 4100×2200×2150
Specifications / technical characteristics
H-7065 NC automatic CNC horizontal band saw for metal cutting, intended for industrial workshops and production lines. CNC control provides programmable cutting cycles, automatic feeding and integrated coolant options to support repetitive precision cuts.
Technical data (table)
Band saw model: H-7065
Cutting capacity (mm): OD 650 / 700W×650H
Blade speed (m/min): 15-70
Blade size (mm): 54×1.6×7400
Spindle motor (kW): 7.5
Pressure motor (kW): 2.2
Machine layout (mm): 4100×2200×2150
Specifications / technical characteristics
- Model: H-7065 NC, horizontal configuration
- Cutting capacity: Ø 650 mm (additional spec 700W×650H)
- Blade speed range: 15-70 m/min for processing different materials
- Blade dimensions: 54 × 1.6 × 7400 mm
- Spindle motor power: 7.5 kW
- Pressure (hydraulic) motor: 2.2 kW
- Overall dimensions (L×W×H): 4100 × 2200 × 2150 mm
Other ESTOPCNC products

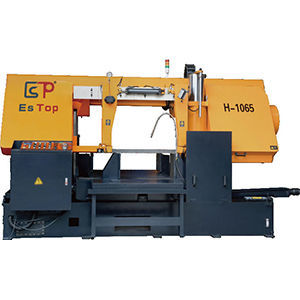

NC band saw machine
