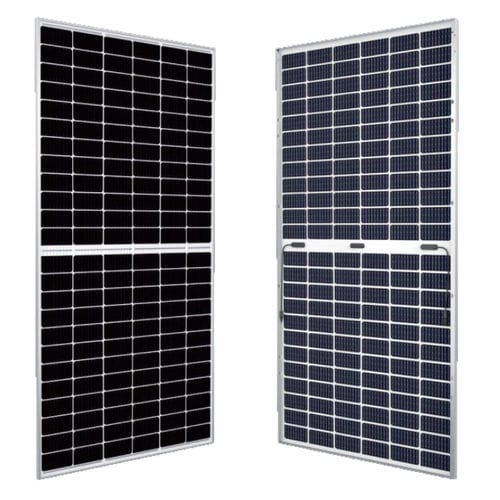

Monocrystalline silicon PV module ET-M772BH TW/TB series
CETUVIEC

Add to favorites

Compare this product

Go to the ET Solar website for more information

Characteristics

Material

monocrystalline silicon

Certifications

TUV, IEC, CE

Other characteristics

PERC

Peak power (Wp)

Max.: 550 W

Min.: 398 W

Open-circuit voltage

Max.: 49.9 V

Min.: 46.2 V

Short circuit current

Max.: 14 A

Min.: 11.3 A

Max power voltage

Max.: 42 V

Min.: 37.2 V

Max power current

Max.: 13.1 A

Min.: 10.7 A

Module efficiency

20.5 %, 20.7 %, 20.9 %, 21.1 %, 21.3 %

Lenght

2,279 mm
(90 in)

Width

1,134 mm
(45 in)

Height

35 mm
(1 in)

Weight

28 kg
(61.73 lb)

Description

• Enhanced safety by excellent fire resistance • Perfect for sandy, snowy and high latitude regions • Bifacial technology enables additional energy harvesting from rear side(up to 25%) • Lower operating temperature, more reliable • Cut cell, Less internal power loss, Less mismatch loss
