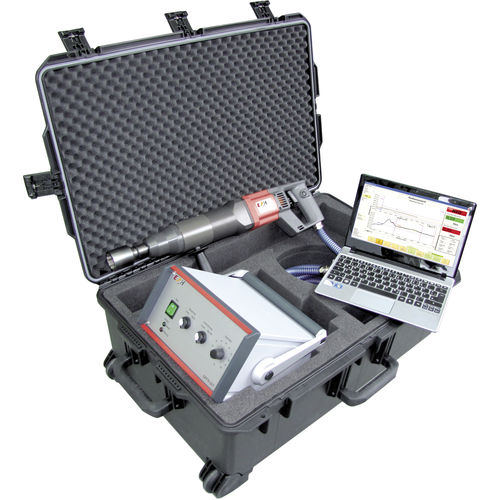

Friction test bench DPFR-027

torquecomputer-controlledgearbox

Mobile friction value measurement for transmission optimization with service case Application In order to reduce the frictional torque in a transmission from the automotive industry, a measuring device is required to accompany the development. With the DPFR-027, changes in design can be measured directly on the product. This means that even the smallest improvements can be identified. The area of application of this testing device is extremely diverse and can easily be implemented in other applications. Thanks to the mobile design, tests can be carried out under different temperatures and climatic conditions. Special features - hand-held drive unit - compact, slim design - constant test speed independent of load - selectable direction of rotation and speed - additional storage to eliminate lateral forces - Detection of torque and angle of rotation - Graphical recording of the test process - Storage of test results in Excel - Simultaneous viewing of up to 20 variable test sequences from the database, shown in color - Variable test speed - Reproducible testing process thanks to constant speed independent of torque - waterproof service case
