Electronic module

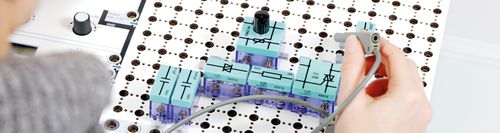

The fundamentals of electrical and electronic engineering, electrical system and automobile electronics, i.e. „automotive“ – all of these topics are available - close to practical applications - as 4 mm plug-in systems. These are versatile circuits for mounting on plug-in panels with the corresponding components. The components are mounted in robust, transparent enclosures with ventilation apertures for heat dissipation and 4-mm gold contacts. The original components can be recognized, analyzed and identified by the experimenting student due to the transparent material. The colored cover plate of the panel shows the circuit symbol of the integrated component. At request, the plug-in blocks are stored on a storage board in A4 format. The front plate shows a graphical representation and – additionally to the value - the exact storage position. The 4mm safety plugs can be stored individually according to their color-coding. Optional extensions are marked in different colors and can be stored there, too. The compact boards come with a universal power supplies and plug-in terminals of various designs with 4-mm safety sockets or 4/2-mm SI sockets that can be chosen by you appropriately. The comprehensive manuals of ETS with didactically prepared learning situations are to supplement the training system on the fundamentals of electrical engineering. Colored exercises and work instructions with examples, animations and graphic representations make the learning process easier and assure quick and interesting approaches on this topic. TECHNOCards give a quick overview on the system and facilitate the use and application of the training systems even for beginners.
