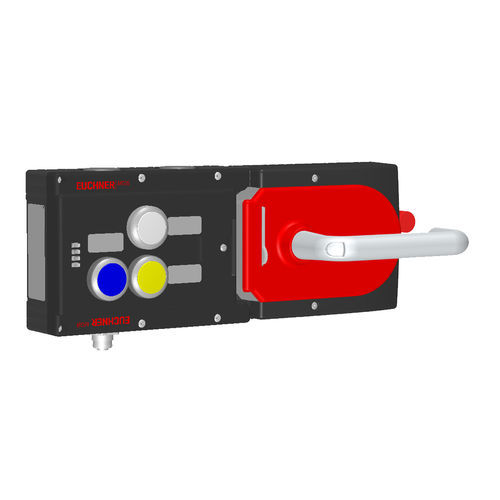

Electromechanical lock MGB-L0H-APA-R-110550

bolthandlewith buttons

Interlocking set MGB-L0H-APA..., with 3 pushbuttons, incl. label carrier, M12 for enabling switch • Interlocking (without guard locking) • 3 pushbuttons (illuminated, wh, ye, bu) • incl. adhesive labels • With cable entry • With plug connector M12 for enabling switch • Unicode Guard locking type MGB-L0... The bolt tongue in the handle module is moved into and out of the interlocking module by actuating the door handle. The door arm is not locked in the locked position. Door hinge A mechanical door stop is permanently integrated into the evaluation module of the MGB. A marking on the stop makes adjustment easier. LED indicator The LED indicator indicates all important system and status information. Monitoring outputs OD ON when the door is closed OT Bolt tongue inserted into the evaluation module OI Diagnostics; there is a fault Pushbuttons S2 1 NO contact, white, illuminated S3 1 NO contact, yellow, illuminated S4 1 NO contact, blue, illuminated Connection for enabling switch The device has an M12 plug connector for the direct connection of an enabling switch (e.g. ZSA, order no.: 110560).
