Lock with buttons MGB-L1-ARA-AD4A1-S1-R-110872

electromechanicalfor doorszinc

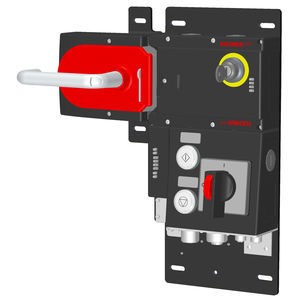

Locking module MGB-L1-ARA... (guard locking by spring force) with 3 pushbuttons, incl. label carrier, RC18 • Guard locking with guard lock monitoring • Can be connected in series with other AR devices (CES-AR and CET-AR) • 3 pushbuttons (illuminated, wh, wh, wh) • incl. adhesive labels • With plug connector RC18 • Unicode Guard locking type MGB-L1... The locking arm is held in the locked position by spring force and is unlocked by solenoid force (closed-circuit current principle, mechanically locked). Door hinge A mechanical door stop is permanently integrated into the evaluation module of the MGB. A marking on the stop makes adjustment easier. LED indicator The LED indicator indicates all important system and status information. Monitoring outputs OD ON when the door is closed OT Bolt tongue inserted into the evaluation module OL Guard locking solenoid in locked position OI Diagnostics; there is a fault Pushbuttons S1 1 NO contact, white, illuminated S2 1 NO contact, white, illuminated S3 1 NO contact, white, illuminated Adhesive labels Devices with adhesive labels have pre-formed recesses. The adhesive labels enclosed (standard size 12.5 x 27 mm) can be affixed in these recesses.
