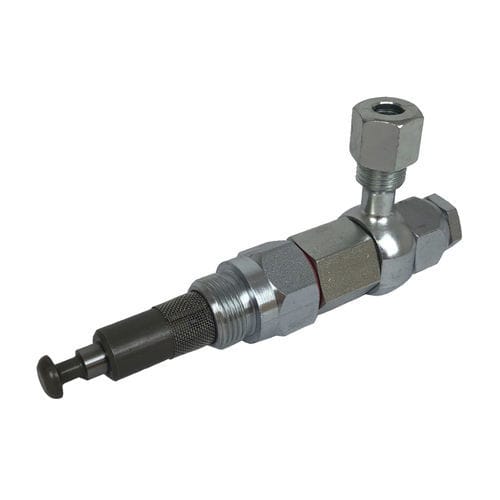

Pump head DMF-A

DMF-A Pump element The DMF-A pump element is available in different versions and is used in the GMF, PMW, GMA and GMZ piston pumps. TECHNICAL DATA: Medium: oil / grease Dosing volume per stroke and outlet in cm³: 0,08 / 0,15 / 0,22 max. delivery pressure in bar: 350 Number of outlets: 1 FEATURES AND ADVANTAGES: Adjustable flow rates: The delivery rates can be throttled down to 25% of the full volume. Different dosing volumes: The pump element is available with dosing volumes of 0.08 cm³/stroke, 0.15 cm³/stroke and 0.22 cm³/stroke. High pressure range: The maximum delivery pressure is 350 bar. Strainer: A strainer in the suction area protects the system from damage caused by coarse dirt. Various connections: Various pipe and threaded connections are available.
