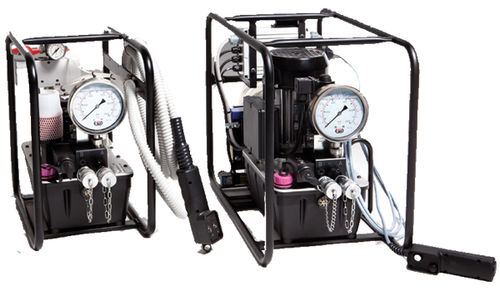

Piston pump MDW series

for chemicalswith combustion engineindustrial

Specifically designed for torque wrenches, these power packs combine maximum operating efficiency with a compact and lightweight design. Thanks to their compact dimensions and weight, they are easy to carry and are supplied with a handle or a protective frame. All models are equipped with: – 1/4” NPT male coupler on advance line and female on return line equipped with dust caps ; – Two-stage piston pump ; – Electric or pneumatic 4 ways 2 position valve ; – Pressure regulating valve ; – Pressure gauge ; – Relief valve ; – Plastic tank ; – Plastic case with integrated handle (mod. MDWR) ; – Protection housing (mod. MDWRH, MDWRP and MDWRHE) ; – Oil level gauge ; – 3 m. remote control ; – 5 m. electric cable ; – Heat exchanger (mod. MDWRHE). 4 different models are available: – MDWR with 2,4/0,4 l/min pump and electric single phase 0,75 kW motor ; – MDWRH with 6/0,6 l/min pump and electric single phase 1,1 kW motor ; – MDWRP with 6/0,6 l/min pump and air 1,5 kW motor ; – MDWRHE with 6/0,6 l/min pump and electric single phase 1,1 kW motor and heat exchanger. OPERATIONAL AREAS Ideal if combined with torque wrenches.
