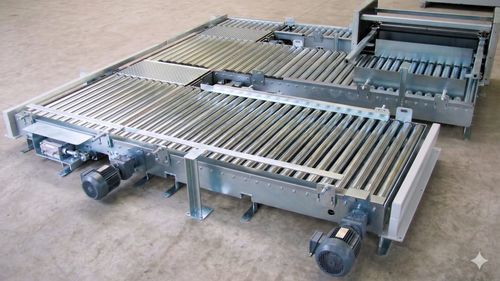

Roller conveyor RollCon

horizontaltransportfor materials handling

Product overview
Our standard RollCon range comprises roller conveyors designed for pallets, boxes and similar load carriers up to 1200 mm width. Standard maximum load-bearing capacity is 2000 kg. Conveyors are available in galvanised steel, powder-coated finish or fully stainless steel and are manufactured by EUROline.

Functional description
We supply individual conveyors or design, supply and install complete conveyor systems tailored to customer requirements. All conveyors are produced in-house to EUROline quality standards and can be equipped with a range of optional components to integrate into existing material handling systems.

Key features

• Modular design for flexible layout and easy extension
• Use of high-quality components (e.g. SEW gear motors, corrosion-resistant drive chains)
• Thick-walled rollers with bearing seals for extended life
• Drive variants: controllable (frequency-controlled) or uncontrolled
• Steel frame: powder-coated (any RAL), galvanised or stainless steel
• Optional accessories: pallet guides, adjustable roller guide plates, footplates, sensors, locks and stoppers
• Roller pitch 174 mm for load capacity up to 1700 kg; 95 mm for up to 2000 kg
• Conveyor height range 250–600 mm
• Standard conveyor lengths from 1400 to 2800 mm (custom lengths available)
• Conveyor speed up to 0.6 m/s (up to 1.0 m/s depending on specification)

Key technical data
Dimensions: L = 1396–2792 mm, W = 986 or 1186 mm, H = 250–600 mm
Load-bearing capacity: up to 2000 kg (standard); higher loads possible with reduced roller pitch
Roller pitch options: 174.5 mm, 95 mm or customised on request
Roller: 80 x 3 mm, galvanised or stainless steel; 5/8" 15-tooth chain pinion
Roller track profile: standard 160 x 8 mm; robust M24 stainless steel feet
Drive: roller-to-roller chain drive, SEW gear motor 0.37–1.5 kW depending on pallet weight; options include frequency control (Movimot), bus interfaces (Profibus, AS-i, CAN), brakes, temperature monitoring, protection IP54–IP65
Conveyor speed: up to 1.0 m/s (typical up to 0.6 m/s in standard configuration)
Surface treatment: powder-coated, galvanised or full stainless steel
Standard colour: RAL 7035; other colours available on request
Optional equipment: solid adjustable pallet guides, adjustable roller guide plates, locks, stoppers, end stops
