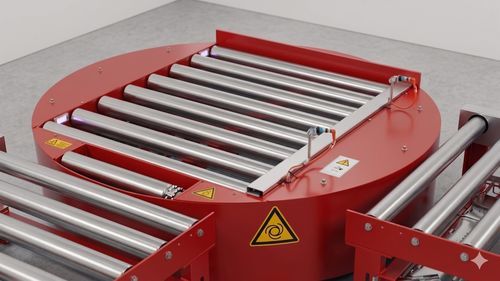

Motor-driven turntable

horizontalfor conveyorwith roller conveyor

Summary
EUROline turntables and rotating conveyors provide a space-saving solution for redirecting and distributing pallets, boxes, sacks and similar loads within conveyor systems, including around corners and to multiple lines.

Functional description
Robust full-steel construction combined with servo drives or gear motors equipped with position sensors and durable slewing rings enables precise positioning, 360° rotation and handling of very heavy loads. Units can be configured for fixed or indexed positioning and integrated with control and safety systems.

Applications

• Transport and rotation of pallets, boxes and sacks
• Changing conveyor direction to route loads around corners
• Distribution to multiple conveyor lines or processing stations

Technical characteristics / specifications

• Full-steel frame, powder-coated, galvanized or stainless-steel options
• Drive options: servo drives or gear motors with position sensors
• Slewing rings for precise and durable rotational movement
• Standard load capacity: 2500 kg (chain conveyor), 2000 kg (roller conveyor); higher capacities available with specific configurations
• Conveyor height: 250–600 mm (adjustable)
• Standard conveyor length: 1400 mm (customizable)
• Rotation range: 360° in both directions
• Standard max conveying speed: up to 2 m/s
• Optional components: pallet guides, side guides, sensor packages, safety devices, hydraulic or servo lifts
• Optional features: chain corner transfer unit, two-level conveyor, traversing trolley for cross-travel
• Designed for integration with plant control systems and safety interlocks
