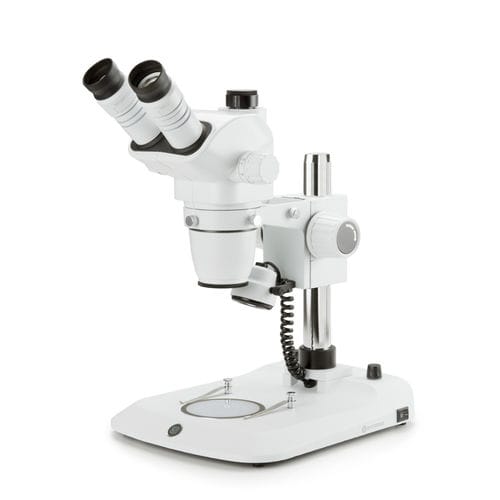

Optical stereo microscope NexiusZoom ESD series

industrialbinoculartrinocular

The NexiusZoom stereo microscopes from Euromex enable examining your specimen with high-performance precision and generate two- and three-dimensional images allowing observation for your highest demanding microscopy applications The NexiusZoom stereo microscopes are supplied with a large choice of objectives and stands, with or without illumination. Ideal for all kinds of industrial applications. With additional lenses and objectives magnifications from 3.3 up to 180 times can be achieved These top level zoom ESD safe microscopes are perfect for analyzing all kinds of material surfaces or to observe larger objects in the electronic industry Highlights • Binocular and trinocular heads with HWF 10x/22 mm eyepieces • Ergonomically designed stands • ESD safe microscopes • Zoom 1 : 6.7 ratio, 6.7x to 45x standard • 3 W LED illuminations EYEPIECE(S) Pair of HWF 10x/22 mm eyepieces HEAD   Binocular or trinocular heads with 45° inclined tubes. Both eyepieces with ± 5 diopter adjustments. Interpupillary distance adjustable between 54 mm and 75 mm OBJECTIVE Zoom 1:6.7 objective with 0.67x to 4.5x magnifications. Field of view from 33 mm to 4.9 mm. Working distance 110 mm. Additional 0.5x, 0.75x, 1.5x and 2.0x lenses available. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput MAGNIFICATIONS Working distance and field of view with standard HWF 10x / 22 High Wide Field eyepieces STAND The rack & pinion and pillar stands of the NexiusZoom are equipped with an ergonomic designed, wide flat base. Complete with two object clamps and Ø 100 mm transparent and black/white stage plates and double illuminators.
