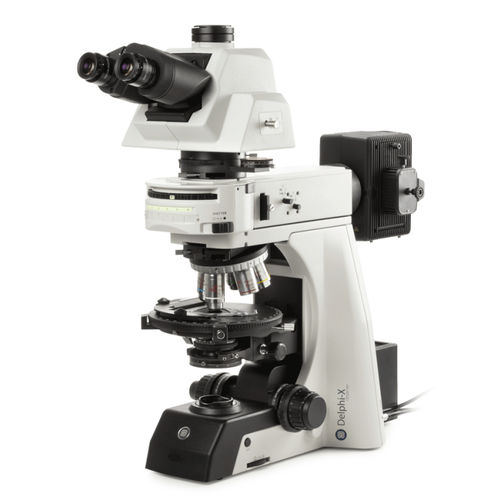

Optical microscope Delphi-X series

industrialuprightSiedentopf type

State-of-the-art microscopes for advanced materials science applications The ergonomic design and outstanding state-of-the-art objectives make the Delphi-X Observer the ideal microscope for advanced materials application. The 25 mm field of view of the eyepieces and the plan apochromatic objectives enable observations with perfect color rendering at high resolving power Highlights • Brightfield and polarization • Bertrand lens for conoscopic observation • High contrast objectives with minimal aberrations • Super wide field SWF 10x/25mm eyepieces • Quintuple nosepiece • 360° rotatable analyzer and polarizer • Enhanced infinity corrected EIS optical system • Semi-apo strain free plan EIS or plan objectives • 100 W halogen illumination EYEPIECES • Super wide field SWF 10x/25 mm, Ø 30 mm tubes • Extended wide field EWF 10x/22 mm, Ø 30 mm tubes (optional) Three extra eyepieces for transmitted illumination: • Super wide field SWF 10x/25 eyepiece with crosshairs with micrometer scale for Ø 30 mm tubes  • Super wide field SWF 10x/25 eyepiece with crosshairs for Ø 30 mm tubes • Super wide field SWF 10x/25 eyepiece with 20 x 20 grid for Ø 30 mm tubes  Three extra eyepieces for reflected illumination: • Super wide field SWF 10x/22 eyepiece with crosshairs with micrometer scale for Ø 30 mm tubes • Super wide field SWF 10x/22 eyepiece with crosshairs for Ø 30 mm tubes • Super wide field SWF 10x/22 eyepiece with 20 x 20 grid for Ø 30 mm tubes STANDARD HEAD Siedentopf trinocular with 30° inclined tubes. Interpupillary distance adjustable between 47 and 78 mm. The trinocular standard head has an optical path selector (100:0 / 80:20 / 0:100). Diopter adjustment on both eyepieces
