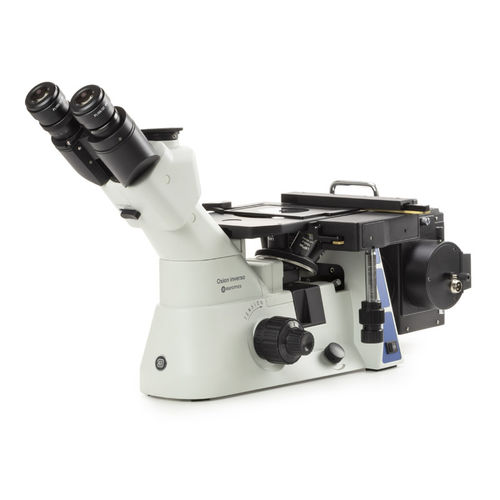

Optical microscope Oxion series

industrialfor materials researchinverted

The Oxion Inverso inverted microscopes for material science are intensively used for observation of large pieces of material made from metal, wood, plastics and more The Oxion Inverso is available with a powerful 50 W halogen brightfield contrast illumination and a large mechanical stage. The polarization and color filters makes this instrument suitable for a wide variety of applications  Highlights • Observation of all types of materials • Long working IOS plan achromatic objectives • Revolving quintuple nosepiece • Materials Science applications • Brightfield with polarization • Long working IOS plan semi apochromatic objectives • 50 W halogen Köhler illumination EYEPIECES Pair of DIN HWF Plan 10x/22 mm eyepieces NOSEPIECES Revolving quintuple nosepiece on ball-bearings HEAD •Trinocular 45° inclined tubes with extended low and high positions.  • One diopter adjustment on left eyepiece. Interpupillary distance of 54 to 75 mm. • Trinocular head with light path selector 100-0/80-20  OBJECTIVES Infinity color corrected long working distance 5x/0.15, 10x/0.14, 20x/0.45 plan achromatic IOS objectives and plan semi apochromatic S50x/0.55 and S100x/0.80 IOS objectives. No cover glass correction  All optics are anti-fungus treated and anti-reflection coated for maximum light troughout STAGE Large stage 250 x 230 mm equipped with a coaxial mechanical 120 x 78 mm X-Y stage, delivered with:  - metallic insert standard with Ø 12 mm diameter hole and Ø 25 mm diameter hole  - metallic insert with hole for mechanical stage  FOCUSING  Coaxial 25 mm coarse and fine adjustments, 2 µm precision and with friction adjustment
