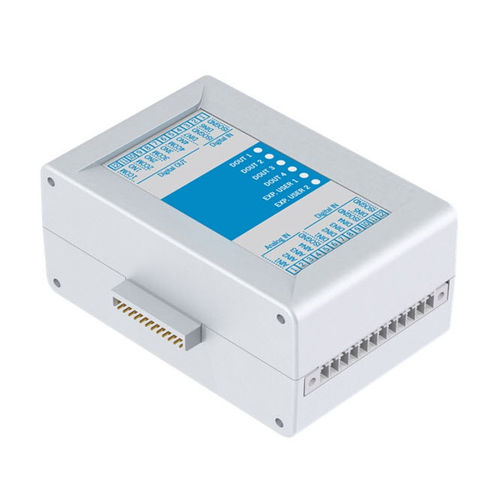

Security expansion module ReliaIO 10-12

analogcustomized

is a fast and simple way to expand the capabilities of Eurotech Multi-service IoT Edge Gateways with extra digital and analog ports. Industrial Grade - Compact and sturdy, with reliable terminal block interfaces and a wide operating temperature range ReliaGATE Compatible - Designed to be a companion for the ReliaGATE 10-12, expands the gateway capabilities with extra digital and analog ports 4x Isolated Digital Inputs - Supporting 0-36V input range and optionally customizable 0/1 level thresold 4x Isolated Digital Outputs - Open drain output transistors rated 60V, up to 0.5A output and clear LED status indication 4x Protected Analog Inputs - Supporting 0-36V input range and 12bit @1KHz sampling Open Platform - Supported by Everyware Software Framework (ESF), the IoT Java/OSGi based-middleware for IoT Edge Gateways that accelerates gateway development and enables remote management Customizable - Personalization and full customization options are available, ranging from branding (“skins” and color) to deep HW/SW configurations The ReliaIO 10-12 is a fast and simple way to expand the capabilities of Eurotech Multi-service IoT Edge Gateways with extra digital and analog ports. Designed to be fitted to the side of the ReliaGATE 10-12, it is rated for the same level of reliability and operating temperature range. The ReliaIO 10-12 features a high performance 32bit MCU to offload the gateway, delivering highly consistent performance under any load.
