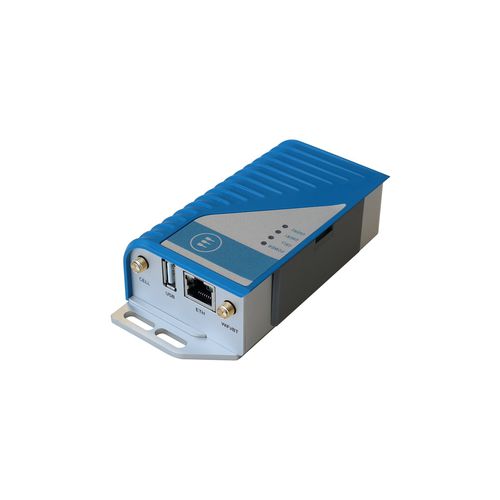

Industrial gateway ReliaGATE 10-05 series

IoT3GEthernet

is a compact and efficient Multi-service IoT Edge Gateway for industrial applications that has been designed to comply with global certification requirements. Caratteristiche Small and Efficient - Powered by NXP i.MX285 CPU, the ReliaGATE 10-05 is a compact and lightweight IoT Edge Gateway that provides efficient performance at less than 2W IoT Ready - Breadth of connectivity options: 2G and 3G global cellular modem, Wi-Fi, BLE, Fast Ethernet, protected USB and serial ports Truly Industrial - Wide range power supply with surge, sag, reverse polarity and overvoltage protections, protected USB and serial ports Internal Backup Battery - Integrated backup battery, providing uninterruptible power supply (UPS) and safe shutdown Customizable - Flexible: personalization and full customization options are available, ranging from branding (“skin” and color) to deep HW/SW configurations Descrizione The ReliaGATE 10-05 is a compact and efficient Multi-service IoT Edge Gateway for industrial applications that has been designed to comply with global certification requirements. Based on the NXP i.MX285 CPU, with 512MB of RAM, 4GB of eMMC and a user-accessible microSD slot, the ReliaGATE 10-05 is a low power gateway suitable for intensive workload in industrial applications: it supports a 9 to 36VDC power supply with transient/surge/noise/reverse polarity protection, two protected serial ports (RS-232 and RS-485), and one noise and surge protected USB port. An internal battery provides up to 25 minutes of uptime and allows a safe system shutdown in case of blackout.
