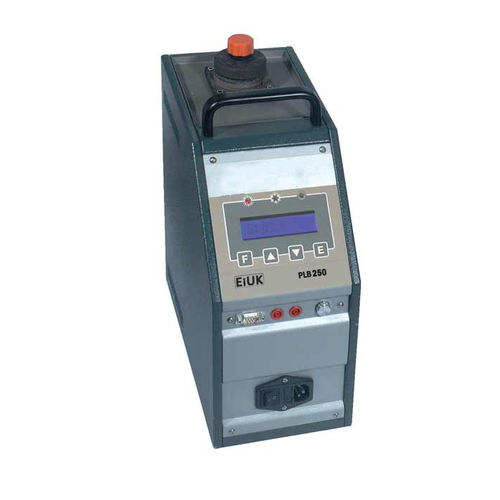

Temperature calibrator PLB 250

for temperature sensorsportabledigital

The PLB 250 is a portable stirred liquid bath temperature calibrator suitable for testing any type or odd shaped temperature sensors in a range from RT to 250 ºC. Benefits: - Temperature range: RT to 250 ºC - Large calibration volume: Ø 60 x 170 mm - Accuracy better than ±0.08 C using external reference sensor - High stability: ± 0.02 ºC - Best in class radial uniformity: ± 0.02 ºC - Inputs for reference sensor and sensor under test - Fully programmable ramp - Automatic switch test function - Use as stirred liquid bath, dry block, black body target and surface sensors temperature calibrator - RS232 and calibration software as standard Description The PLB 250 have a large calibration volumes, 60mm x 170 mm deep, which make it ideal to use as portable liquid bath. Stirred liquid baths are suitable for temperature sensors of all types and shapes and can provide smaller calibration uncertainties ( stability, uniformity and accuracy) than dry blocks calibrators. The PLB 250 Portable stirred liquid bath comes in two models: - PLB 250-TS Temperature calibrator/source with no inputs. - PLB 250-TC Temperature Calibrator/source with inputs for reference sensor and sensor under test
