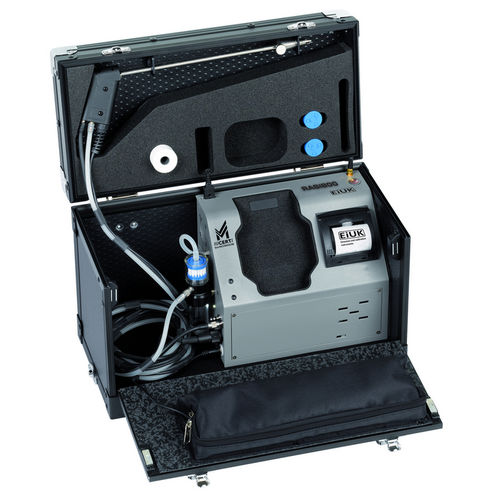

Exhaust gas analyzer RASI 800

oxygencarbon monoxidenitrogen dioxide

Portable Emissions Analyser for 02, CO, NO, NO2 (NOx) MCERTS certified suitable for compliance level reporting (quarterly emissions) and Engine NOx profiling Description Measure 02,CO, NO, NO2 and SO2 and CO2%(NDIR) the RASI 800 MCERTS Engine Test Kit is designed to provide accurate NOx readings on stationary engines employed in power generation. This KIT is mostly used for profiling NOx reading at different engine load and for compliance reporting to the Environmental Agency. It is particular suitable for the quarterly emissions reporting. At a glance, the RASI 800 MCERTS display all the important engine exhaust parameters: - True NOX ( NO + NO2 ) measurement - Display NOx in ppm or mg/m3 or both at the same time - Display NOx in mg/m3 with O2 reference at 5 % in term of NO2 as prescribed by the Environmental Agency - Display CO in mg/m3 or PPM with O2 reference at 5 % - Display Lamba value ( Air Ratio) - Display SO2 in ppm or mg/m3 with O2 reference ( when SO2 cell is installed) - Display O2%, Exhaust temperature and all other parameters.
