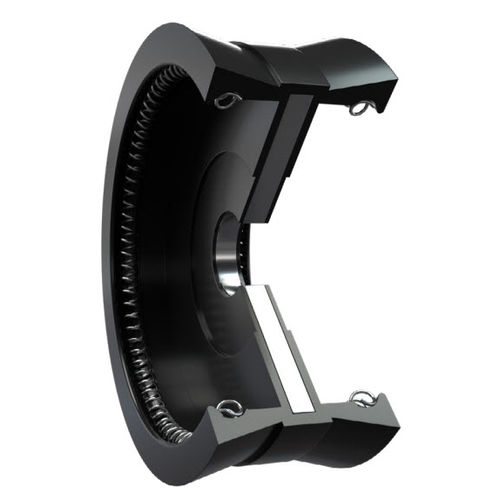

Piston seal TD seriesdouble lipspring-energizedsteel
Add to favorites
Compare this product
Characteristics
- Type
- double lip, spring-energized
- Material
- steel, NBR, FKM
- Configuration
- circular, T-shaped, triangular
- Application
- piston, for cylinders, for pneumatic cylinders
- Other characteristics
- pneumatic, dynamic, double-acting, one-part, spring
- Temperature limit
Min.: -20 °C
(-4 °F)Max.: 100 °C
(212 °F)- Pressure limit
15 bar, 40 bar
(217.6 psi, 580.2 psi)Min.: 15 bar
(217.6 psi)Max.: 40 bar
(580.2 psi)- Diameter
Min.: 8 mm
(0.315 in)Max.: 35 mm
(1.378 in)- Outer diameter
Min.: 26 mm
(1.024 in)Max.: 300 mm
(11.811 in)- Speed
0.2 m/s
(0.7 ft/s)
Description
Profile : TD
Piston seals - Double acting
Type: Complete pneumatic and low pressure hydraulic
Material: NBR + Steel (also available in FKM + Steel on request)
Temperature range: -20°C/+100°C
Pressure: 4 MPa/40 bar
1.5 MPa/15 bar (hydraulic)
Speed: 0.25m/s
- Use for short stroke cylinders not exposed to radial loads
- NBR seal bonded to a metal ring
- Springs on the seal lips for maximum sealing in low pressure situations
- Complete piston solution
