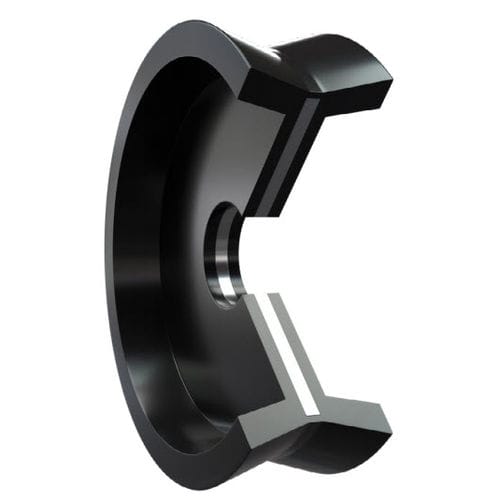

Piston seal TDP serieslippedsteelNBR
Add to favorites
Compare this product
Characteristics
- Type
- lipped
- Material
- steel, NBR, FKM
- Configuration
- circular, V, T-shaped
- Application
- piston, for cylinders, for pneumatic cylinders, for hydraulic cylinders
- Other characteristics
- hydraulic, pneumatic, dynamic, single-acting, double-acting, compact, one-part
- Temperature limit
Max.: 100 °C
(212 °F)Min.: -20 °C
(-4 °F)- Pressure limit
12 bar
(174 psi)- Diameter
Max.: 27 mm
(1.063 in)Min.: 18 mm
(0.709 in)- Outer diameter
Max.: 160 mm
(6.299 in)Min.: 100 mm
(3.937 in)- Speed
1 m/s
(3.3 ft/s)
Description
Profile : TD
Piston seals - Double acting
Type: Complete pneumatic and low pressure hydraulic
Material: NBR + Steel (also available in FKM + Steel on request)
Temperature range: -20°C/+100°C
Pressure: 4 MPa/40 bar
1.5 MPa/15 bar (hydraulic)
Speed: 0.25m/s
- Complete - Ready to install
- Use for short stroke cylinders not exposed to radial loads
- NBR seal bonded to a metal ring
- Complete piston solution
