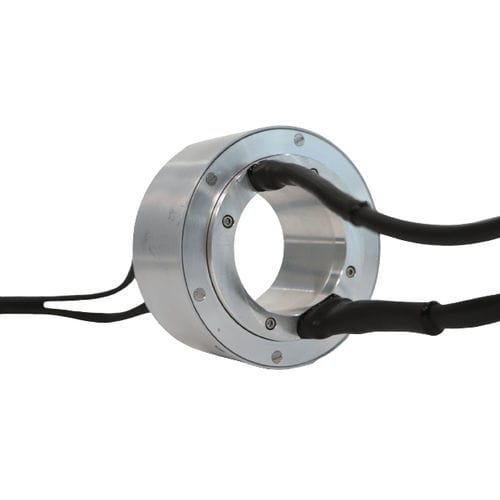

Through-bore slip ring electriccolumn typefor robotics
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Construction
- through-bore, column type
- Applications
- for robotics, industrial, for research and development, for cable reels, for medical equipment, for CCTV applications, for offshore applications, subsea, railway, for submarine robots, for the steel industry, for robots, for UAVs, for measurement instruments, for wrapping machines, for oil industry applications, for rotary tables, packaging machine, for packaging, for medical devices, for wind turbine, for cranes, for machine tools, for CT scan, for marine applications, medical, for test benches, video transmission, for cameras
- Material
- aluminum alloy, gold, stainless steel, silver, aluminum, copper, steel, bronze, carbon
- Other characteristics
- low-torque, IP54, with gold contacts, for extreme temperatures, IP65, maintenance-free, custom-made, high-voltage, IP67, high-performance, fiber brush, low-temperature, rugged, large-diameter, non-magnetic, low-maintenance, ATEX, rugged, high-current, with FORJ, 380V DC
- Voltage
Max.: 400 V
Min.: 24 V
- Primary current
Max.: 500 A
Min.: 0.1 A
- Rotational speed
Max.: 1,000 rpm
(6,283 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
1 unit
- Internal diameter
Max.: 1,000 mm
(39.37 in)Min.: 10 mm
(0.39 in)- External diameter
15 mm
(0.59 in)
Description
Through-bore slip ring designed for reliable operation in extreme cold and high-altitude environments, available with a configurable bore for system integration. Offered in multiple mechanical form factors and available with or without integrated fiber-optic interfaces.
What is a Low Temp Application Through Bore Slip Ring?
The product is a through-bore slip ring tailored for low-temperature, high-altitude applications. It is available in drum or pancake styles to meet customer requirements. The mechanical bore diameter is defined per application and the electrical slip ring operates as a standard through-bore unit.
Integration with Fiber Optics
These designs can incorporate a Fiber Optic Rotary Joint (FORJ) within the bore. Integration can be performed by the supplier, or the unit can be supplied with the required mechanical and optical interfaces so customers can complete FORJ installation themselves.
Key applications
Technical characteristics / specifications
What is a Low Temp Application Through Bore Slip Ring?
The product is a through-bore slip ring tailored for low-temperature, high-altitude applications. It is available in drum or pancake styles to meet customer requirements. The mechanical bore diameter is defined per application and the electrical slip ring operates as a standard through-bore unit.
Integration with Fiber Optics
These designs can incorporate a Fiber Optic Rotary Joint (FORJ) within the bore. Integration can be performed by the supplier, or the unit can be supplied with the required mechanical and optical interfaces so customers can complete FORJ installation themselves.
Key applications
- Airborne systems operating at very high altitudes where extreme cold is encountered
- Exposed gimbal assemblies and other systems requiring reliable rotation in harsh, low-temperature environments
Technical characteristics / specifications
- Form factors: drum or pancake style (customized to customer requirements)
- Through-bore: configurable diameter depending on application needs
- Environmental suitability: designed for extreme cold and high-altitude operation
- FORJ support: option to integrate a Fiber Optic Rotary Joint or provide customer interface
- Functionality: electrical slip ring behaves as a standard through-bore slip ring
