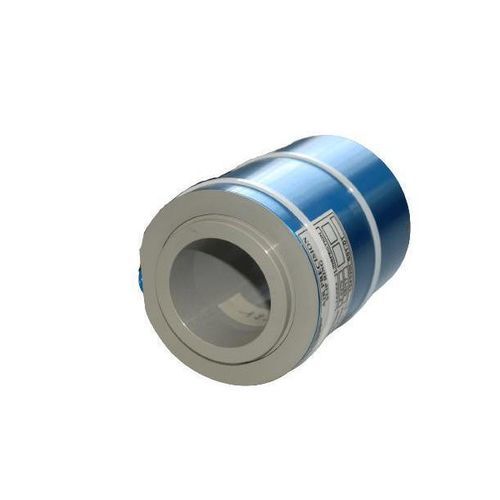

HD-SDI slip ring

electrichollow-shaftthrough-hole

EVERAXIS designs the optronic hollow-shaft slip rings for integration into defence and targeting systems requiring high-speed video transfer. These slip rings enable reliable rotation between a rotor and a stator while supporting high data throughput, including high-frequency signals, 3G-SDI and infra-red camera interfaces.

How it works
The slip ring uses a through-bore (hollow shaft) to accommodate cabling and sensors while maintaining continuous high-speed data transmission between rotating and stationary elements. Each unit is engineered to meet stringent military specifications for precision, durability and dependable operation in demanding airborne, ground or maritime environments.

Key Applications in Defence and Surveillance

• Airborne or ground surveillance and tracking platforms
• Counter-measure directors and optronic targeting systems
• Thermal cameras and vehicle sights
• Unmanned air or ground vehicles
• Multi-sensor turret systems
• Naval optronic solutions and stabilized multi-role systems

Technical specifications

• Through-bore (hollow shaft) slip ring design enabling cabling and/or sensors to pass through the central bore
• Designed for high-speed video and large data throughput
• Supports high-frequency signals including 3G-SDI and infra-red camera interfaces
• Compact design optimized for integration into optronic systems
• Built to military-grade specifications for precision, durability and reliability
• Ensures continuous electrical and data transmission between rotor and stator during rotation
