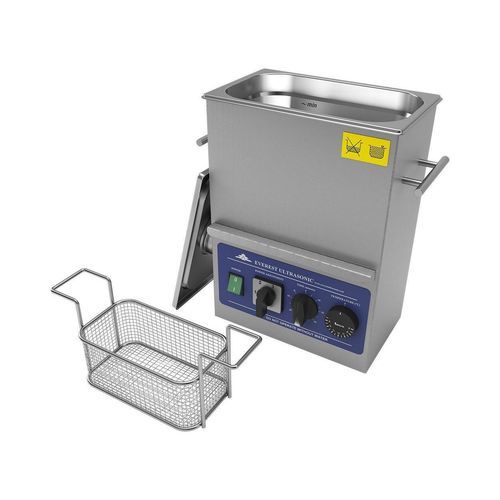

Ultrasonic washing system CleanExautomaticmedicallaboratory
Add to favorites
Compare this product
Characteristics
- Technology
- ultrasonic
- Operational mode
- automatic
- Applications
- parts, medical, laboratory
- Other characteristics
- compact
Description
Overview
Compact desktop ultrasonic washing systems for cleaning small and delicate parts. Designed for jewellery, laboratory, dental and medical instruments as well as other small components. Ultrasonic cleaning is performed in a desktop-mounted tank; 28 kHz is supplied as standard. Manual loading into baskets makes the unit suitable for light to medium weight items.
General Features
Technical specifications
Model | Basket Dimensions (w*l*h) mm | Tank Dimensions (w*l*h) mm | External Dimensions (w*l*h) mm | Ultrasonic Power
CleanEx 901 / CleanEx 911 | 190*240*80 | 240*300*150 | 295*400*380 | 400 Wpeak / 200 Weef
CleanEx 1201 / CleanEx 1211 | 190*240*130 | 240*300*200 | 295*400*380 | 800 Wpeak / 400 Weef
CleanEx 2001 / CleanEx 2011 | 250*450*80 | 300*505*150 | 350*600*430 | 800 Wpeak / 400 Weef
CleanEx 2801 / CleanEx 2811 | 250*450*130 | 300*505*200 | 350*600*430 | 800 Wpeak / 400 Weef
Advantages
Washing steps
» The entire cleaning cycle is performed in a single heated tank; parts are placed in baskets for immersion and ultrasonic treatment
Optional features
» 40 kHz ultrasonic frequency available on request
Technical data
Compact desktop ultrasonic washing systems for cleaning small and delicate parts. Designed for jewellery, laboratory, dental and medical instruments as well as other small components. Ultrasonic cleaning is performed in a desktop-mounted tank; 28 kHz is supplied as standard. Manual loading into baskets makes the unit suitable for light to medium weight items.
General Features
- Washing system: Desktop ultrasonic washing systems
- Working principle: Parts are placed in baskets inside the tank for ultrasonic cleaning
- Tank system: Single tank with heating
- Construction: Entirely 304 stainless steel
- Ultrasonic: 28 kHz (standard)
Technical specifications
Model | Basket Dimensions (w*l*h) mm | Tank Dimensions (w*l*h) mm | External Dimensions (w*l*h) mm | Ultrasonic Power
CleanEx 901 / CleanEx 911 | 190*240*80 | 240*300*150 | 295*400*380 | 400 Wpeak / 200 Weef
CleanEx 1201 / CleanEx 1211 | 190*240*130 | 240*300*200 | 295*400*380 | 800 Wpeak / 400 Weef
CleanEx 2001 / CleanEx 2011 | 250*450*80 | 300*505*150 | 350*600*430 | 800 Wpeak / 400 Weef
CleanEx 2801 / CleanEx 2811 | 250*450*130 | 300*505*200 | 350*600*430 | 800 Wpeak / 400 Weef
Advantages
- Compact desktop design for limited bench space
- Environmentally friendly operation
- Energy efficient ultrasonic cleaning
- Suitable for light to medium weight items
- Manual loading and simple operation
- Designed for delicate cleaning tasks
Washing steps
» The entire cleaning cycle is performed in a single heated tank; parts are placed in baskets for immersion and ultrasonic treatment
Optional features
» 40 kHz ultrasonic frequency available on request
Technical data
- Series: CleanEx
- Applications: Jewellery, laboratory, dental and medical equipment, small parts cleaning
- Ultrasonic frequency: 28 kHz standard; 40 kHz available on request
- Ultrasonic power: Models from 400 Wpeak / 200 Weef to 800 Wpeak / 400 Weef
- Tank: Single heated tank
- Construction material: 304 stainless steel
- Design: Desktop, compact, for delicate cleaning and light to medium weight parts
- Operation: Manual loading; parts placed in baskets inside the tank for ultrasonic washing
- Available models and primary dimensions: CleanEx 901/911 (basket 190x240x80 mm, tank 240x300x150 mm, external 295x400x380 mm); CleanEx 1201/1211 (basket 190x240x130 mm, tank 240x300x200 mm, external 295x400x380 mm); CleanEx 2001/2011 (basket 250x450x80 mm, tank 300x505x150 mm, external 350x600x430 mm); CleanEx 2801/2811 (basket 250x450x130 mm, tank 300x505x200 mm, external 350x600x430 mm)
