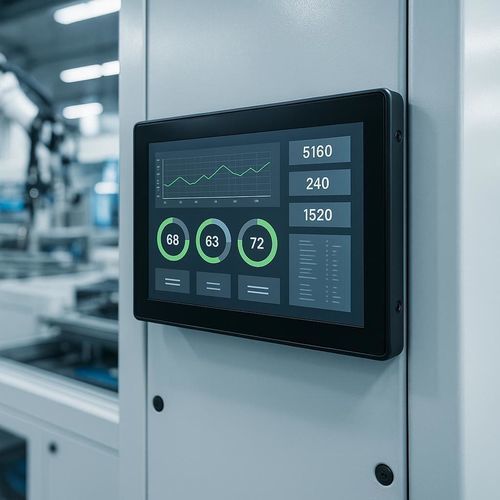

Wall-mounted panel PC EVI-156EB

LCDmultitouch screencapacitive touch screen

The EVI-156EB is an Android-based VESA tablet with a POE (Power Over Ethernet, IEEE802.3at standard) Ethernet port, designed and assembled in France. Measuring 15.6 inches (other sizes available on request), this tablet is ideal for professional or industrial use: touchscreen information display, Android-based machine tool control, etc. It is easy to mount thanks to its VESA mount (75 mm x 75 mm). The EVI-156EB is made entirely of metal, offering robustness and durability. Its 15.6-inch IPS touchscreen (1920 x 1080 pixel resolution, 500 cd/m² brightness, 180° viewing angles) guarantees a perfect image. The 1.8GHz Quad-Core Rockchip 3399 ARM Cortex processor ensures high performance while saving energy. It is equipped with 2GB of DDR4 RAM and 16GB of storage (expandable on custom order). Connectivity is fully integrated: WiFi 802.11bgn, Bluetooth 4.0, Ethernet IEEE802.3at. Power can be supplied via POE or the supplied AC charger. No built-in battery as standard (optional extra available). Internal peripherals include a microphone, speakers and a 2MP front-facing webcam. The metal chassis and integrated VESA mount protect against theft. Software solutions (Android root, ADB over TCP/IP, OTA updates, app execution rights at launch) allow advanced customisation for developers. The EVI-156EB can be customised to suit your needs (connectors, configurations, etc.). Available accessories: VESA mounts, screen protector, stylus, additional charger, 4G modem, wireless keyboard, wired headphones with microphone, extended warranty options and priority technical support. Display: Resolution: 15.6inch - 1920 x 1080 pixels Contrast: 1000:1 Brightness: 300 cd/m² Aspect ratio: 16:9 Screen size: 218 × 135 mm Connectivity: Ethernet: RJ-45 10/100M, PoE IEEE802.3at/af WiFi: 802.11 b/g/n, external antenna SD card slot: supports up to 32 GB Mini USB: USB OTG USB Host: 2 × USB 2.0 ports Headphone jack: 3.5 mm stereo output Video support: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV, etc., up to 1080p Multimedia: Audio: MP3, WMA, AAC, etc. Image: JPEG, JPG Camera: None Other features: Speakers: 2 × 1 W Operating System: Android 10
