IPS LCD panel PC EVI-YZ1011

PCAP capacitive touch screenmultitouch screen10.1"

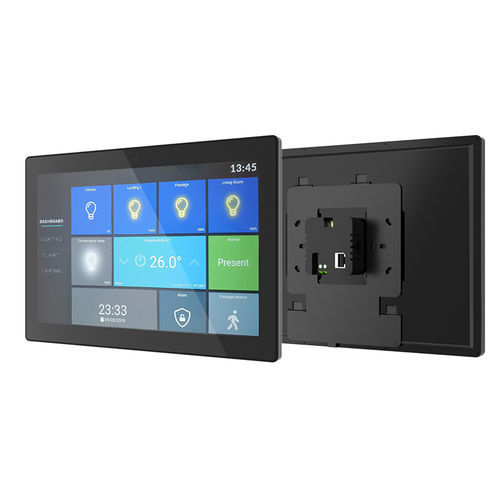

EVI-YZ1011 – 10.1" Flush-Mount Smart Touch Control Panel for Building Automation (Android / Linux) The EVI-YZ1011 is a 10.1-inch in-wall touch control panel designed as a central HMI for B2B automation projects: smart buildings (BMS/GTB), offices, hospitality, meeting rooms, and multi-site deployments. Powered by a Rockchip RK3568 (quad-core Cortex-A55 up to 2.0 GHz), it delivers a smooth user experience to run control apps, supervision dashboards, or custom HMI software. Built for integrators • - Flush-mount installation for a clean, modern finish, compatible with common wall back boxes (86-type / EU / US). • - Flexible OS strategy: Android 11 or 13 as standard, with Linux options (e.g., Debian / Buildroot) for industrial or customized deployments. • - Field-ready interfaces including RS485 and USB-C, suitable for integration with building systems and peripherals. Power & connectivity for easy rollout • - AC 110–240 V input (depending on configuration) for retrofit projects where PoE is not available. Key technical specifications • - Audio / peripherals: integrated microphone, 2× 1 W speakers, front camera 2 MP (optional 5 MP) • - Operating conditions: -5°C to +70°C • - Power consumption (max): up to 20 W • - Dimensions: 247.1 × 173 × 12 mm • - Finish: glass front, plastic frame, typically black
