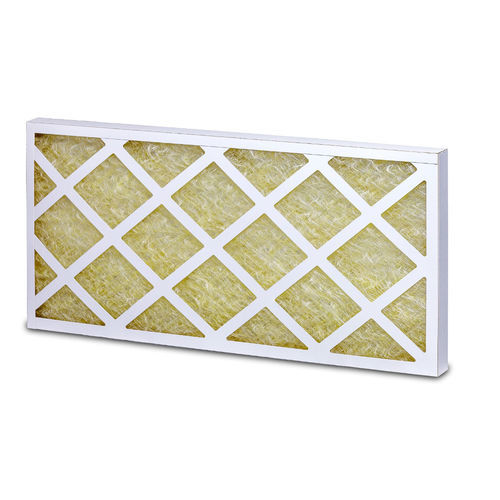

Air filter FZ-G
platefiberglassdepth

air filter
air filter
air filter
air filter
Add to favorites
Compare this product


Characteristics

Designed for
air
Filtration element
plate, fiberglass
Applications
dust, depth
Material
synthetic, paper, glass
Other characteristics
low pressure, small
Operating pressure

Min.: 60 Pa (0.009 psi)

Max.: 130 Pa (0.019 psi)

Fluid temperature

45 °C (113 °F)

Description

Filterzelle-Glass (FZ-G) fz-gFZ-G filter consists of a paper frame and a medium made of glass fibres, so-called Paintstop. Filtration glass medium has a progressive structure, meaning it thickens towards the outlet side of the filter. The result is a higher holding capacity of dust particles. Moreover, the medium is impregnated with an adhesive substance, increasing accumulation of rough dust particles at very low pressure loss. Glass medium is fixed to the cardboard frame. Field of use Paint shops Filtration of rough dust particles Delivered sizes 497 x 497 x 45 mm 597 x 597 x 45 mm 497 x 624 x 45 mm FILTER INSERTS Z-LINE zline-0 Filter inserts Z-line consist of folded synthetic filtration fleece which is inserted into the stable frame, impregnated against humidity, made of cardboard with a protective grille on the inlet or outlet side. Z-shape folded filtration medium allows high air flow at low pressure loss and small installation depth. Filtration medium is reinforced with a net and cannot regenerate. Standard building depths are 48mm, 96mm, 147mm. At the customer request, we can deliver depth from 25 to 150 mm. Field of use Filter inserts of Z-line are used for rougher filtration in ventilation and air-conditioning equipment.
