Quadro linear ball bearing tables - LZBU / LZAU
Low friction with effective sealing
Easy to install and maintain
Worldwide availability through Ewellix distributor network
Flexible in slide length and linear stroke
Standard components of linear ball bearings

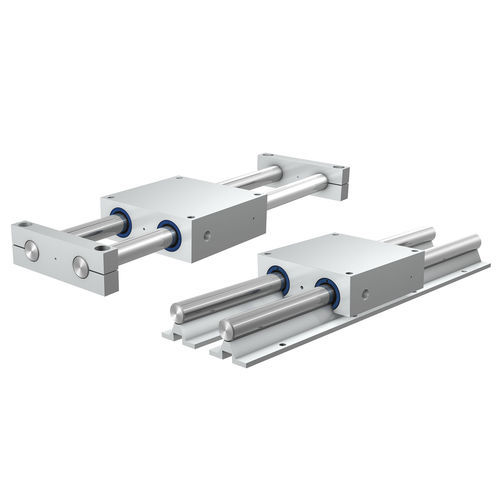

Range with tandem blocks LZBU or shaft supports LZAU
LZAU and LZBU are non-driven linear slides comprised of linear bearing parts. They consist of a quadro unit with shafts and shaft blocks or supports. Quadro tables are used in applications with medium requirements on guiding and positioning accuracy, suitable for effective sealing.
Slides LZBU.. A design is using tandem shaft blocks at both ends and typically the shaft blocks are fixed and the quadro unit is moving axially.
Slides LZBU.. B design are using tandem shaft blocks at both ends and typically the quadro units are fixed and the shaft blocks are moving axially.
Slides LZAU design are using supported shafts with an open quadro unit for long strokes.
