Retractable probe housing EXtract 840M

manual

Product description

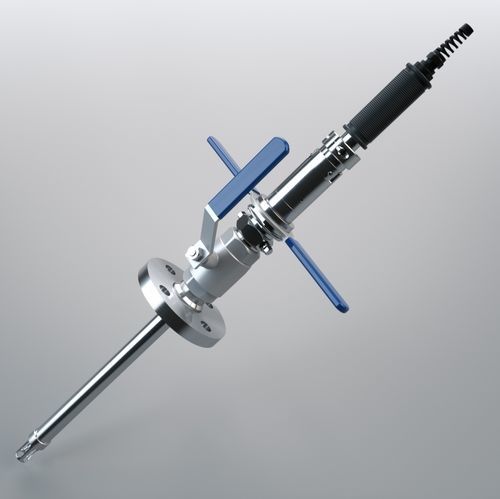

EXtract 840M is a manually operated retractable probe housing with optional ball valve, manufactured in stainless steel, designed for inline pH measurement in pipes and vessels. Its long, flexibly adjustable immersion length enables deep sensor insertion into the process and allows sensor separation under process conditions for cleaning, calibration or removal together with the fitting. The design prioritizes safe handling and straightforward operation.

Your advantages

• Ball valve option for process isolation
• Integrated sealing package for media contact parts
• Automatic locking mechanism at excessive process pressures
• Stainless steel AISI 316L / 1.4404
• Immersion length up to 700 mm (nominal)
• Wide range of process connection options
• Applicable up to 12 bar and 130 °C
• Manually operable up to 4 bar

Applications

• Suitable for sensors Ø12–120 mm with PG13.5 thread (pH glass and ISFET sensors, conductivity and temperature sensors, turbidity and other optical sensors)
• Chemicals
• Water and wastewater treatment
• Harsh industrial processes
• Processes requiring sensor replacement under operating conditions
• Applications requiring long insertion depth

Technical specifications

• Process pressure: 0…12 bar
• Process temperature: -10…130 °C
• Ambient temperature: -10…70 °C
• Immersion length: 300 mm / 700 mm nominal
• Sensors: 120 mm Ø12 PG13.5
• Material: stainless steel 1.4404 / 316L
• Sealings: EPDM, FPM (Viton), FFKM (Kalrez)
• Process connection: Flange DN32 / ANSI 1 ¼", Thread G1 ¼", MNPT1 ¼"
• Ball valve (option): DN32; 1.4408
• Cleaning ports: G1/8", G1/4", FNPT1/4"
• Operating power: manually operated
• Limit switches: without
