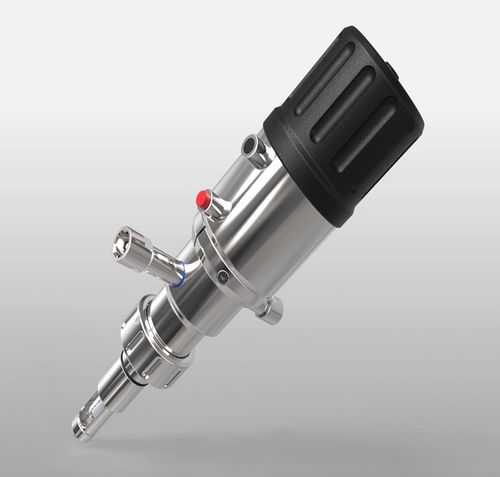

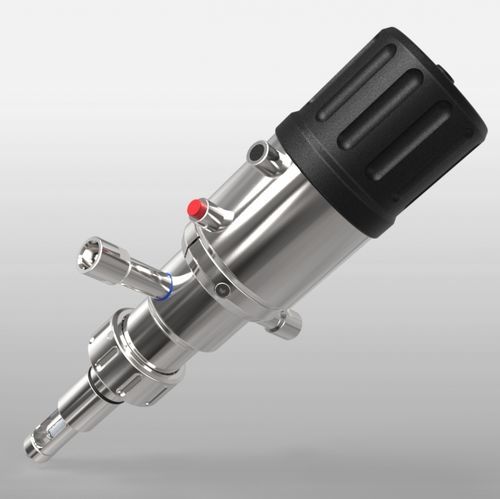

Retractable probe housing EXtract 815M

pneumaticmanual

Product description
EXtract 815M is a manually operated retractable probe housing for welding sockets DN25, available in stainless steel (1.4404 / 316L) or Alloy C22 (2.4602). The manual rotary drive inserts the sensor into the process medium and retracts it into the cleaning chamber. A safety knob automatically locks the unit in the “measuring” and “service” positions. Cleaning, rinsing and calibration of the sensor are possible without stopping the process. An integrated PTFE scraper enables use in abrasive or rough process conditions.

Your advantages

• Integrated PTFE scraper for harsh processes
• Automatic locking with clear indication of measuring and service positions
• Automatic safety lock when sensor is removed
• Safe handling at elevated process pressures due to unique rotary drive
• Materials: stainless steel AISI 316L (1.4404) or Alloy C22 (2.4602)
• Immersion length up to 90 mm
• Suitable for ATEX areas
• Rated up to 16 bar and 140 °C
• Maintenance-free manual drive; retrofit to pneumatic drive possible

Applications

• Compatible with Ø12/225 mm and Ø12/280 mm sensors with PG13.5 thread (pH glass, ISFET, conductivity, temperature, turbidity and optical sensors)
• Chemicals and process industry
• Water and wastewater treatment
• Rough or abrasive processes
• In-line sensor cleaning, calibration and replacement while process is running

Configuration / Options

• Wetted materials: stainless steel 1.4404 / 316L or Alloy C22 (2.4602)
• Sealing materials: EPDM (FDA/USP VI), FPM (Viton), FFKM (Kalrez)
• Sensor lengths: 225 mm Ø12 PG13.5 (gel-filled) or 280 mm Ø12 PG13.5 (liquid-filled)
• Process connection: Ingold DN25 G1 1/4" (O-ring position 28 mm or 50 mm)
• Cleaning ports: G1/8" female, G1/4" female or 1/4" NPT female
• Position feedback: none or electrical (NAMUR)

Specifications (table)
Process pressure: 0…16 bar
Process temperature: -10…140 °C
Ambient temperature: -10…70 °C
Immersion length: up to 90 mm
O-ring position: 28 mm / 50 mm
Sensors: 225 mm Ø12 PG13.5 (also supports Ø12/280 mm PG13.5)
Materials: stainless steel 1.4404 / 316L, Alloy C22 (2.4602)
Sealings: EPDM, FPM (Viton), FFKM (Kalrez)
Process connection: G1 1/4" (DN25), Ingold DN25 G1 1/4"
Cleaning ports: G1/8", G1/4", FNPT1/4"
Drive: manual rotary drive unit, maintenance-free
Limit switches: optional electrical NAMUR switches

Technical characteristics

• Process pressure: 0…16 bar
• Process temperature: -10…140 °C
• Ambient temperature: -10…70 °C
• Immersion length: up to 90 mm
• O-ring positions: 28 mm / 50 mm
• Sensors supported: Ø12 mm / 225 mm PG13.5 (also Ø12/280 mm)
• Wetted materials: stainless steel 1.4404 / 316L or Alloy C22 (2.4602)
• Sealings: EPDM (FDA/USP VI), FPM (Viton), FFKM (Kalrez)
• Process connection: G1 1/4" (DN25)
• Cleaning connections: G1/8", G1/4", 1/4" NPT
• Drive: manual rotary, maintenance-free; retrofit to pneumatic drive possible
• Position feedback: optional electrical NAMUR switches
• Suitable for ATEX areas; rated to 16 bar and 140 °C
