Sensor flow-through fitting EXflow 710

Overview

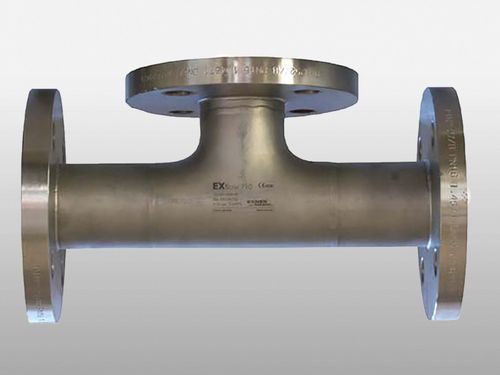

The flow-through fitting EXflow 710 is an accessory designed for retractable housings and static fittings. It is intended for use with EXtract 810 and 810M retractable assemblies and the EXstatic 310 static fitting. The design positions the sensor directly in the process flow to ensure representative and repeatable measurements. The body is manufactured in stainless steel and is available in multiple nominal sizes and connection configurations. An optional conductive ETFE lining increases chemical resistance for demanding media.

Compatibility
Suitable for direct integration of sensors with EXtract 810 / 810M retractable assemblies and EXstatic 310 static fittings. Allows inline installation and easy sensor replacement without process interruption.

Key advantages

• Available sizes: DN25 / 1" and DN50 / 2"
• Selectable flow direction: 90° or 180°
• Material options: stainless steel (1.4571 / 316Ti) or ETFE-lined (conductive option available)
• Multiple process and sensor connection variants
• Rated up to 16 bar and 140 °C
• DN50 flange version available on request with PFA lining (natural or conductive) in stainless steel 1.4571 or coated P235GH steel

Configuration options (selection on product page)

• Material: Stainless steel 1.4571 / 316Ti or Stainless steel 1.4571 / 316Ti with ETFE lining
• Process connection: Flange DN25, Flange DN50 PN16, Flange ANSI 1" , Flange ANSI 2" 150lbs, Welding pipe DN25 / 1" or DN50 / 2"
• Holder / Sensor connection: Flange DN50, Flange ANSI 2" , G1 1/4" socket, Female thread NPT 3/4" , Female thread G3/4"
• Flow direction: 180° or 90°

Specifications
Material: 1.4571 / 316Ti (ETFE-lined optional)
Process pressure: max. 16 bar
Process temperature: max. 140 °C
Process connection: Flange DN25 / DN50 / ANSI 1" / ANSI 2" , welding connection
Sensor connection: Flange DN50 / ANSI 2" , Thread G1 1/4" / G3/4" / NPT 3/4"
Flow direction: 90° or 180°

Applications

• Inline measurement
• Bypass measuring points
• Chemical process applications
• Water and wastewater treatment

Technical characteristics

• Model: EXflow 710
• Material options: Stainless steel 1.4571 / 316Ti; ETFE-lined conductive version optional
• Process pressure rating: up to 16 bar
• Maximum process temperature: 140 °C
• Process connections: Flange DN25, Flange DN50, ANSI 1", ANSI 2", welding connections
• Sensor connections: Flange DN50, ANSI 2", G1 1/4" socket, G3/4" thread, NPT 3/4" thread
• Flow direction: selectable 90° or 180°
• Available sizes: DN25 / 1" and DN50 / 2"
• Optional PFA-lining version on request (DN50 flange) in stainless steel 1.4571 or coated steel P235GH
