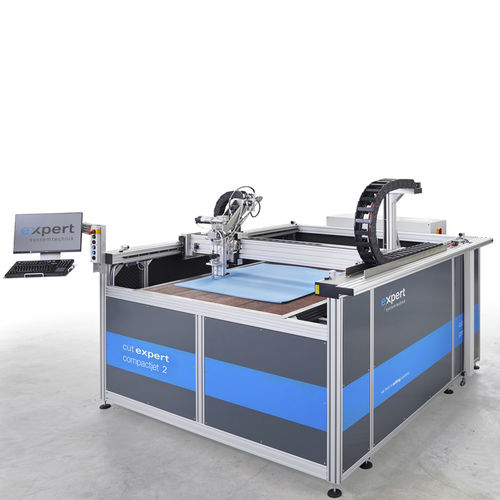

Pure water-jet cutting machine cut expert compactjet 2
for plasticsfor feltsfor carbon fiber

pure water-jet cutting machine
pure water-jet cutting machine
Add to favorites
Compare this product


Characteristics

Technology
pure water-jet
Material
for plastics, for felts, for carbon fiber
Product handled
for foam panels, for packaging, for flexible PU foam blocks, for carpets, for gaskets, belt, for plastic bags, for awnings
Control type
CNC
Applications
for industrial applications, for the automotive industry, for aeronautical applications, for shipbuilding, for processing industry, for upholstery, for the plastics industry, for orthopedics
Configuration
bridge, single-head, 2D, 3-axis
Other characteristics
precision, high-speed, CE, high-performance, for small diameter, programmable, modular, high-productivity, for window seals, small thermal effect, fully-enclosed, for technical textiles, small kerf, for small parts, 45°
X travel

Min.: 100 cm (39 in)

Max.: 600 cm (236 in)

Y travel

Min.: 100 µm

Max.: 300 µm

Cutting speed

1.167 m/s (45.932 ft/s)

Max.: 70 m/s (229.659 ft/s)

Z travel

Min.: 50 mm (2 in)

Max.: 250 mm (10 in)

Maximum cutting height

Min.: 50 mm (2 in)

Max.: 250 mm (9.8 in)

Description

cut expert compactjet - Multi-functional CAM cutting system using pure-waterjet technology for the 2D cutting Product features: • Field of application: cutting of foams, plastics, technical textiles and other flat, flexible, non-metallic materials • Cutting area in various sizes: S and M with customised sizes possible if required • 1 cutting table • 1 cutting bridge and 1 cutting head • Cuts single or multiple layers Strengths, added value • Suitable for flat sheets of material and rolled goods • Short cutting times thanks to a high cutting speed of up to 70 m/min • High cutting precision • Environmentally friendly waterjet technology • Extremely low water consumption of approx. 0.2 l/min • No geometry influence for holes, contours, etc. • Soundproof thanks to the complete enclosure of the cutting zone • Easy to clean • Easily extendible for coping with increased capacity requirements thanks to the modular design Technical details Cutter: • Highly dynamic servo drives for a cutting speed of up to 70 m/min • Acceleration up to 5 m/s² • Repeatability +/- 0.2 mm • Cutting tool: waterjet nozzle with diameter of 0.08 up to 0.25 mm • 1 cutting bridge with 1 cutting head, extendible as required • 1 cutting table, easy access to the centre of the table • Cutting table covered with steel honeycomb structure with integrated splash back protection • Water collection tray of stainless steel with water drain • Soundproof enclosure of the cutting zone • Machine frame constructed of stainless aluminium profile system • CE compliant Hardware: • expert-PC with latest version of Microsoft Windows Software: • Licence for 1 cutter • PC-based NC control software
