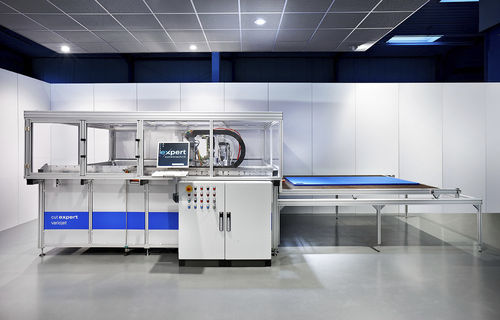

Pure water-jet cutting machine cut expert variojet
for plasticstextilefor leather

pure water-jet cutting machine
pure water-jet cutting machine
pure water-jet cutting machine
Add to favorites
Compare this product


Characteristics

Technology
pure water-jet
Material
for plastics, textile, for leather, for felts, for composite materials, for fiberglass
Product handled
for foam panels, for acoustic panels, for packaging, for plastic bags, for flexible PU foam blocks, multi-ply fabric, for carpets, strip fabric, adhesive tape, for gaskets, belt, for awnings, for shipbuilding kits
Control type
CNC
Applications
for the food industry, for industrial applications, for the automotive industry, for aeronautical applications, for medical applications, for shipbuilding, shoe industry, for processing industry, for upholstery, for the plastics industry, for orthopedics
Configuration
compact, bridge, single-head, multi-head, 3-axis
Other characteristics
high-precision, high-speed, precision, for window seals, high-productivity, CE, high-performance, programmable, modular, combined, 45°, for heavy-duty applications, fully-enclosed, for technical textiles, for small diameter
X travel

1,800 mm (71 in)

Y travel

3,000 mm (118 in)

Cutting speed

Max.: 70 m/s (229.659 ft/s)

1.167 m/s (45.932 ft/s)

Maximum cutting height

150 mm (5.9 in)

Description

cut expert variojet - Multi-functional CAM cutting system using pure-waterjet technology for the 2D cutting • Field of application: cutting of foams, plastics, technical textiles and other flat, flexible, non-metallic materials • Cutting area in various sizes: S, M, L and XL with customised sizes possible if required • 1 moveable cutting table, optionally extendible by 1 additional cutting table • 1 cutting bridge and 1 cutting head, extendible to several simultaneously operated cutting heads • Cuts single or multiple layers Strengths, added value • Suitable for rolled goods and for flat sheets of material • Short cutting times thanks to a high cutting speed of up to 70 m/min • High cutting precision • Environmentally friendly waterjet technology • Extremely low water consumption of approx. 0.2 l/min • No geometry influence for holes, contours, etc. • No vacuum required • Soundproof thanks to the complete enclosure of the cutting zone Technical details Cutter: • Highly dynamic servo drives for a cutting speed of up to 70 m/min • Acceleration up to 5 m/s² • Repeatability +/- 0.2 mm • Cutting tool: waterjet nozzle with diameter of 0.08 up to 0.25 mm • 1 cutting bridge with 1 cutting head, extendible as required • 1 cutting table, with 360-degree access to the centre of the table, extendible as required • Cutting table covered with steel honeycomb structure with integrated splash back • CE compliant Hardware: • expert-PC with latest version of Microsoft Windows Software: • Licence for 1 cutter • PC-based NC control software

VIDEO
