lead analyzer / portable lead analyzer / portable - PQ3350-3


  • Measured entity:


  • Configuration:




* Datalogging of single and 3-phase/3-wire or 3-phase/4-wire systems (up to 52,428 single phase readings or 17,476 3-phase readings)
* Flexible clamp probes can be used for wrapping around bus bars and wire bundles
* Large backlighting LCD displays up to 35 parameters in one screen
* Clamp-on True RMS power measurements with on-screen Harmonics display
* Simultaneous display of Harmonics and Waveform
* Display of Waveform with Peak Values (1024 samples/period)
* Analysis of Total Harmonic Distortion (THD-F)
* Maximum Demand (MDkW, MW, kVA, MVA) with programmable period
* Adjustable CT ratio (1 to 600) and VT ratio (1 to 3000)
* Graphic Phase diagram with 3-Phase system parameters
* 3-phase Voltage or Current Unbalanced Ratio (VUR, VIR) and Unbalanced Factor (d0%, d2%)
* Calculated Unbalanced Current through Neutral Line (In)
* Capture 28 Transient events (including Dip, Swell and Outage) with programmable threshold (%)
* Optically isolated USB interface with software to download Waveforms, Power Parameters and Harmonics

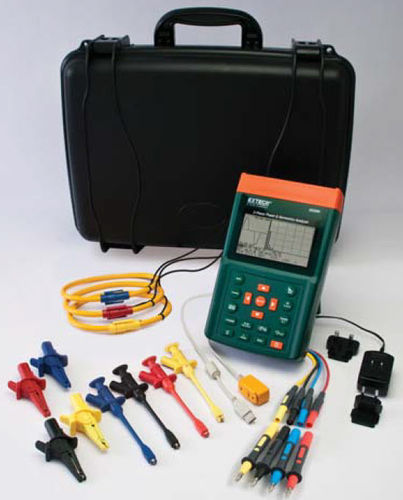

* Includes 3 flexible current clamps, 4 voltage leads with alligator clips and retractable plunger clips, 8 AA batteries, universal AC adaptor, software, USB interface cable, and case
