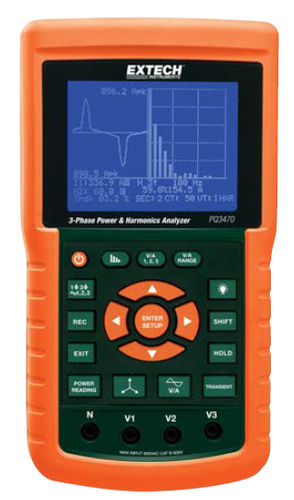

lead analyzer / benchtop / graphic / with data logger



  • Measured entity:


  • Configuration:


  • Other characteristics:

    graphic, with data logger



Large dot-matrix, sun-readable, numerical, backlit LCD with easy-to-use onscreen menu
Full system analysis with up to 35 parameters:
V (phase-to-phase), V (phase-to-ground)
A (phase-to-ground)
KW / KVA / KVAR / PF (phase)
KW / KVA / KVAR / PF (system)
KWH / KVAH / KVARH / PFH (system)
Phase angle
Optional 200A, 1200A Current Clamps or 3000A Flexible Current Probes (sold separately)
Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
Simultaneous display of Harmonics and Waveform
Analysis of Total Harmonic Distortion (THD)
Graphic Phase diagram with 3-Phase system parameters
3-phase Voltage or Current Unbalanced Ratio (VUR, AUR) and unbalanced factor
Capture Transient events (including dip, swell, and outage) with programmable threshold (%)
Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format
Wide sampling rate range (2 seconds to 2 hours)
Built-in Clock and Calendar
Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240V AC adaptor and case. Clamp probes sold separately.
