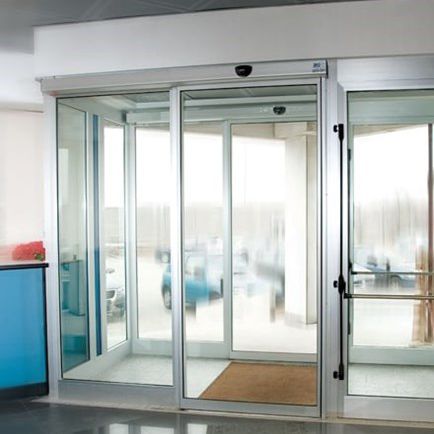

Door operator A1000 Compact 2

Technical specification

• Power supply: 230 Vac
• Absorbed power: 100 W
• Drive unit: 24 Vdc motor with encoder
• Leaf speed: Adjustable 5–70 cm/s
• Free passage width: 800–3000 mm
• Maximum leaf weight: single leaf up to 110 kg; bi-parting 70 kg per leaf
• Dimensions: 150 mm depth, 100 mm height
• Backup batteries: 20 minutes operation in case of power failure

Key features

• Compliant with EN 16005 and EN 13489-1 (Pl "c")
• Very compact profile suitable for constrained architectural spaces
• Surface-applied telescopic structure ideal for shopfronts and façades
• Encoder-controlled motor for precise speed and position management
• Integrated battery backup for emergency operation

Product details
Slim, space-saving operator designed for surface mounting on sliding doors. The compact casing (150 mm depth, 100 mm height) simplifies integration in visible and constrained installations. Drive and controls are optimized for commercial and public building entrances. FAAC integration for accessory compatibility.

Applications & installation

• Typical uses: retail shopfronts, office entrances, hotels and public buildings
• Suitable for single or bi-parting sliding doors; consult technical sheet for specific mounting and accessory options
• Installation notes: surface-applied telescopic rail recommended for shallow lintels and minimal headroom
