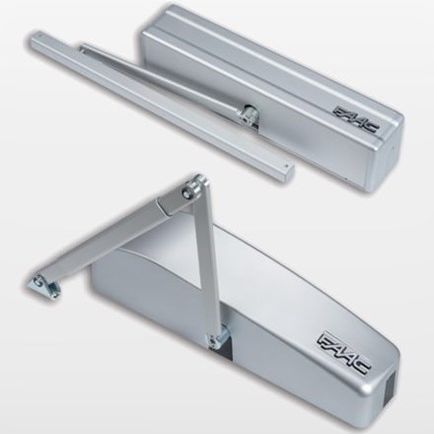

Swing door operator 950N2

Overview
The 950N2 Swing Door Operator is an electromechanical automatic operator for internal and external swing doors. It supports left- and right-hand installation and can be mounted for push or pull operation. The unit provides quiet opening and closing and features a silent hold-open function. The built-in MPS processor board delivers real-time control and the encoder continuously monitors door position.

Key features

• Compliant with EN16005 European standard
• Suitable for almost all internal and external swing doors; side-mountable for push or pull operation
• Configurable for left- or right-hand doors
• Quiet operation with silent hold-open function
• MPS processor board for real-time control and encoder for continuous position detection

Variants
Model Variant: 950N2 with curved profile cover | Part Number: 1054142 | Door Type: Swinging | Arm Type: Sliding arm; Swinging arm | Maximum Leaf Weight: 367 kg | Free Passage: 3 m
Model Variant: 950N2 with SAA Cover | Part Number: 1054152 | Door Type: Swinging | Arm Type: Sliding arm; Swinging arm | Maximum Leaf Weight: 367 kg | Free Passage: 3 m

Product details
FAAC 950N2 spare parts and part numbers are available. A quick start guide, user manual and technical datasheet are provided (PDF documentation available).

Technical specification

• Power supply: 230 Vac
• Power consumption: 100 W
• Drive unit: Electromechanical 24Vdc with encoder
• Maximum leaf length: 1400 mm
• Maximum leaf weight: 367 kg for 700 mm leaf with articulated arm; 92 kg for 1400 mm leaf with articulated arm
