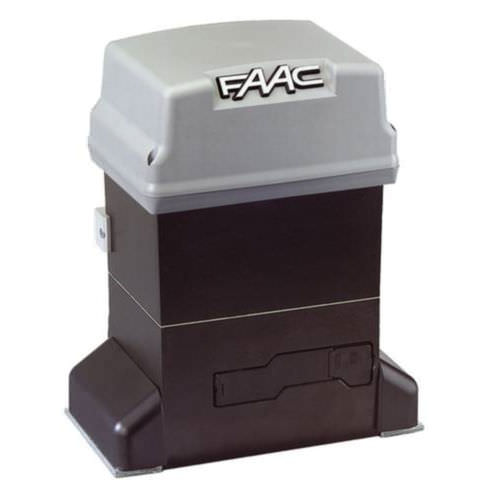

Self-locking sliding gate drive 746 ER

Product overview
Gearmotor for sliding gates supporting up to 600 kg per leaf. Suitable for residential, light commercial and industrial installations. Integrated control board protected by a housing with display for simplified programming.

Technical specification

• Duty: Residential / Light commercial / Industrial
• Power consumption: 300 W
• Max gate weight: 600 kg
• Max speed: 9.6 m/min
• Use frequency: 70%
• Power supply: 230 V
• Limit switch type: Magnetic / Inductive (variant dependent)
• Obstacle detection: Encoder

Key features

• Twin-disk oil-bath clutch combined with electronic control and encoder for maximum anti-crushing safety
• Non-reversing gearmotor eliminates need for electric locks
• Key-protected manual release lever
• Magnetic limit-switch system for simplified magnet installation
• Height and side adjustable mounting for flexible installation
• Protected control board with display for easy programming

Variants

• 746 ER Z16 — Part no. 109776 — Max leaf weight 600 kg — Inductive limit switch — 230 V — Use frequency 70% — Encoder
• 746 ER Z20 — Part no. 109773 — Max leaf weight 400 kg — Inductive limit switch — 230 V — Use frequency 70% — Encoder
• 746 ER CAT — Part no. 109774 — Max leaf weight 400 kg — Inductive limit switch — 230 V — Use frequency 70% — Encoder
• 746 ER RF — Part no. 109775 — Max leaf weight 400 kg — Inductive limit switch — 230 V — Use frequency 70% — Encoder

Product details
Gearmotor for sliding gates with max leaf weight 600 kg. Safety system: twin-disk oil-bath clutch with encoder. Key-protected release and adjustable mounting. Control board with display protected by housing. FAAC - Simply automatic.
